Parameters & Specifications:

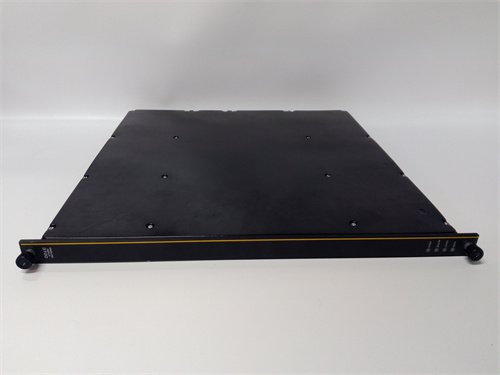

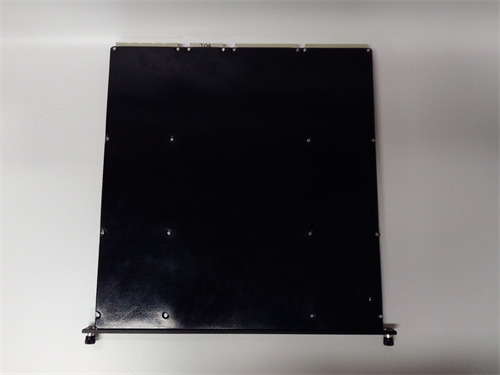

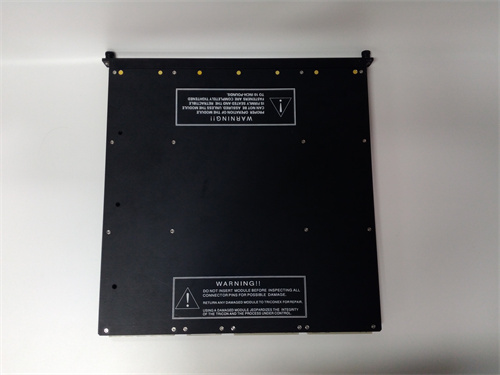

*Model: TRICONEX 3720
*Manufacturer: Emerson Automation Solutions (formerly Invensys)
*Type: Safety Management System Communication Module
*Input Voltage: 10-30 VDC1
*Load Current: ≤ 200 mA1
*Switch Frequency: ≤ 500 Hz1
*Input Update Rate: 10 ms2
*Resolution: 12 bits or 14 bits programmable2
*Accuracy: < 0.15% of FSR from 0°C to 60°C2
Dimensions & Weight:
*Physical Size: 100mm x 160mm (approx.)
*Board Weight: 0.8Kg
*Alternative Weight: 1.24kg
Series:
- Part of the TRICONEX series of safety systems5
Features:
*Multi-Functionality: Integrates multiple functions into a compact design, saving space35
*Communication Ports: Standard MECHATROLINK and Ethernet (100Base-TX) ports for seamless integration35
*Modular Design: Includes a basic module and an optional slot for added flexibility and expandability35
*High Reliability: Ideal for environments requiring strict adherence to safety standards, such as petrochemical and energy management5
*Diagnostic Indicators: PASS, FAULT, ACTIVE, and FIELD indicators for easy troubleshooting2
Functions:
*Data Communication: Handles and manages data communication within industrial automation systems, ensuring efficient information transfer5
*Process Control: Enables precise control of industrial processes through its high-speed data processing capabilities1
*Safety Management: Acts as a safety management system module, contributing to the overall safety of industrial operations5
*System Integration: Facilitates system integration with various devices and networks, thanks to its support for multiple communication protocols
