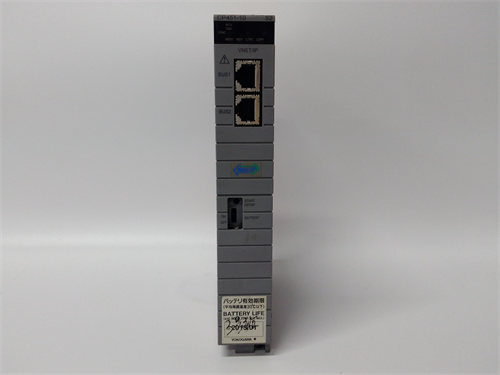

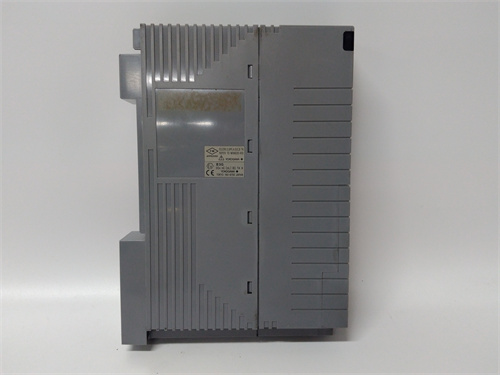

YOKOGAWA CP451-10

Description

Parameters and Specifications:

• Input Voltage Specification: 24V DC
• Load Voltage: 24VDC, 50mA
• External Voltage Range: 20.4~26.4VDC
• Maximum Output ON Voltage: 2V DC
• Maximum Leakage Current when OFF: 0.1mA
• Maximum Load Current: 100mA per channel, 26.4V¹
• Channels: 32 channels (digital output)¹
• Power Consumption: 1.5W²
• Communication Interface: RS485²

Dimensions and Weight:

• Size: Approximately 26mm x 35mm x 25mm (Length x Width x Height)¹
• Weight: 1.24kg¹

Series:

• CP451 Series¹

Features:

• High-Performance Controller Module: Designed for industrial automation control systems²³
• Multiple Digital Output Channels: Capable of outputting digital signals for controlling external devices³
• Communication Interface: Allows data communication and integration with other control systems, PLCs, and SCADA systems³
• High Resolution: Provides precise signal output³
• Voltage/Current Output: Supports different voltage and current output ranges to meet various device and sensor needs³
• Programming and Configuration: Requires programming and configuration in the control system to determine the operation modes and logic of output channels³
• Industrial-Grade Durability: Can operate stably in harsh industrial environments, resisting vibration, humidity, and temperature changes³

Applications:

• Industrial Automation: Used to control industrial equipment, actuators, valves, and motors for automated production processes³
• Power Distribution: Controls grid equipment, circuit breakers, and switches to maintain the stability of power distribution³
• Manufacturing: Controls mechanical equipment, CNC machines, conveyor belts, and production lines³
• Building Automation: Controls devices in building automation systems such as air conditioning, lighting, and security equipment³
• Environmental Monitoring: Controls equipment in environmental monitoring systems for monitoring air quality, water quality, and other environmental parameters³
