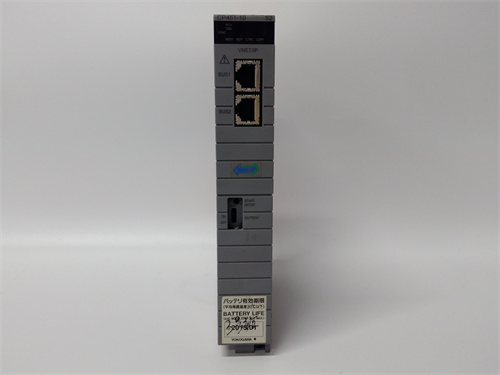

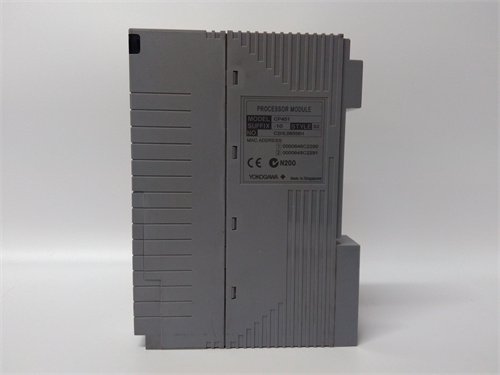

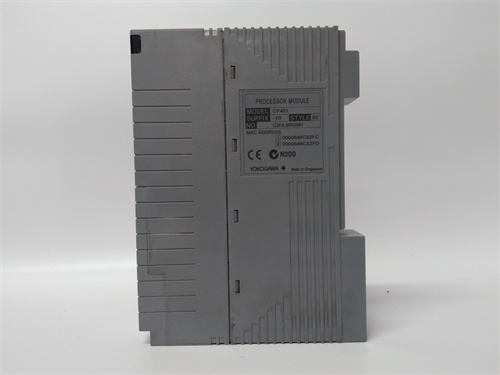

YOKOGAWA CP451-10

Description

YOKOGAWA CP451-10 is a processor module designed for industrial automation and control systems. Here is an overview of its parameters, specifications, dimensions, weight, series, features, and applications in English:

Parameters and Specifications:

• Input Voltage: 24V DC¹²³⁴⁵.
• Load Voltage: 24VDC, 50mA¹²⁶.
• External Voltage Range: 20.4~26.4VDC¹²⁵.
• Maximum Load Current: 100mA per channel at 26.4V¹²⁵.
• Output ON Voltage Maximum: 2V DC¹²⁵.
• Output OFF Maximum Leakage Current: 0.1mA¹²⁵.

Dimensions and Weight:

• Dimensions: Approximately 26mm x 35mm x 25mm (Length x Width x Height)¹⁴⁶.
• Weight: 1.24kg¹⁴⁶.

Series:

• CP451-10 belongs to the Yokogawa CP451 series of processor modules²⁴.

Features:

• Digital Output Channels: Typically equipped with multiple digital output channels for controlling external devices⁵.
• Communication Interface: Supports data communication and integration with other control systems, PLCs, SCADA systems, or networks⁵.
• Resolution: High resolution for precise signal output⁵.
• Programming and Configuration: Requires programming and configuration in the control system to determine the operational modes and logic of the output channels⁵.
• Durability: Industrial-grade durability for reliable operation in harsh industrial environments⁵.

Applications:

YOKOGAWA CP451-10 processor module finds widespread application in industrial automation systems, process control, and related fields where high-performance and reliable control is essential. It can be integrated into larger control systems to handle complex control logic, data acquisition, and communication tasks²³⁵.
