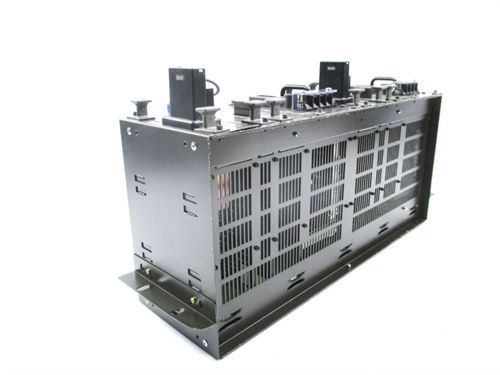

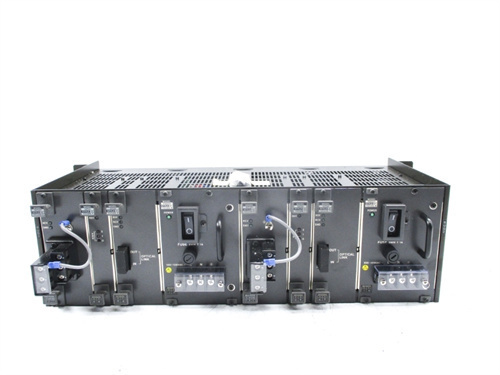

YNT512D

Description

trait
I/O capability: Up to 8 isolated connected field signal channels, and possibly more channels (e.g. YNT512D-Q12 may support up to 12 inputs).
Protection mechanism: Output is protected by a replaceable fuse.
LED indicator: The LED at the top of the module is used to indicate the working status of the module, the status of the configuration parameters, and the status of the hardware output.
Configuration flexibility: It can be configured via a handheld programmer or PLC software, and many configuration parameters can also be modified from the user’s application.

argument
Voltage: 24V (It is said that the working voltage is 220V, but the main information points to 24V).
Current: 100-400A (This is a range, the specific current may vary depending on the application).
Frequency: 50Hz (for some applications).
specification
Model: YNT512D and its variants such as YNT512D-Q11, YNT512D-Q12, etc.
Type: Module, especially I/O modules used in industrial automation control systems.
Properties: It supports 250-volt applications and is suitable for I/O modules such as DI820, DI821, DI825, DO820, DO821 and AI825.
Mounting: DIN rail mounting.
