1. Product Description

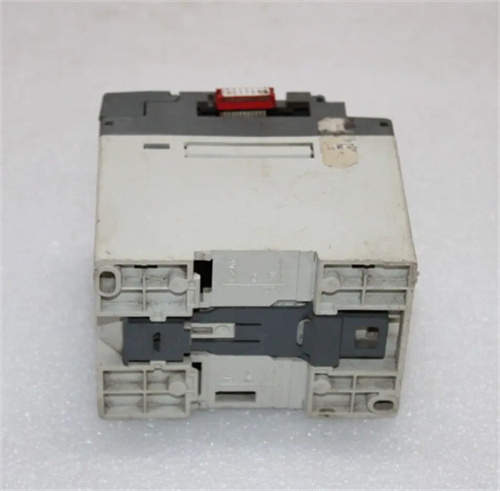

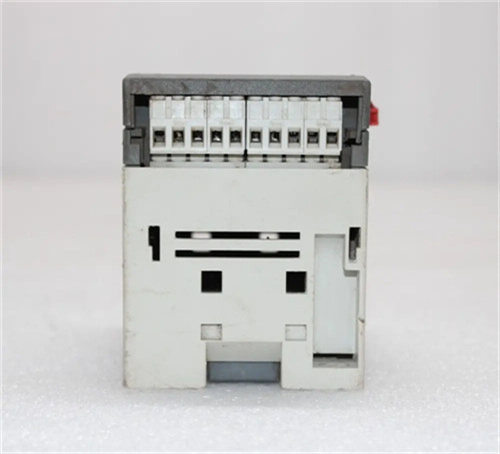

XL16E1 is a highly efficient and reliable PLC spare part that plays a crucial role in modern industrial automation systems. This product is specifically designed to meet the diverse needs of industrial control and monitoring.
The core function of XL16E1 is to process input signals from various sensors, such as temperature sensors, pressure sensors, and flow sensors. It then analyzes these signals and generates appropriate control signals to actuators, like motors, valves, and relays. This enables precise control over industrial processes, ensuring stable operation and high – quality output.
In the manufacturing industry, XL16E1 can be used to control production lines. It helps to regulate the speed of conveyors, the operation of robotic arms, and the quality inspection of products. In the energy sector, it is applied to monitor and control power generation equipment, such as generators and transformers, improving energy efficiency and reliability. The advantages of XL16E1 include high reliability, easy integration, and strong data – processing capabilities. High reliability ensures continuous operation in harsh industrial environments. Easy integration allows it to be quickly incorporated into existing systems. Strong data – processing capabilities enable it to handle complex control tasks.
2. Product Parameters
| Parameter | Details |
|---|---|
| Power Supply Voltage | 24V DC (±5%) |
| Operating Current | Up to 250 mA |
| Interface Types | Ethernet (10/100 Mbps), RS – 485 |
| Ethernet Data Transfer Rate | Up to 100 Mbps |
| RS – 485 Data Transfer Rate | Up to 115.2 kbps |
| Number of Digital Inputs | 16 channels |
| Number of Digital Outputs | 16 channels |
| Digital Input Voltage Range | 0 – 24V DC |
| Digital Output Current Capacity | Up to 1A per channel |
| Number of Analog Inputs | 8 channels |
| Analog Input Range | – 10V to +10V, 0 – 20 mA, 4 – 20 mA |
| Number of Analog Outputs | 4 channels |
| Analog Output Range | – 10V to +10V, 0 – 20 mA |
| Analog Signal Resolution | 12 – bit |
| Operating Temperature Range | – 20°C to 60°C |
| Humidity Range | 5% – 95% (non – condensing) |
| Compatibility | Compatible with most mainstream PLC systems and a wide range of sensors and actuators |
3. Advantages and Features
- High Reliability: In a large – scale automotive manufacturing plant, XL16E1 was installed in the production line control system. Over a period of 10 years, it experienced only one minor failure. The Mean Time Between Failures (MTBF) is estimated to be over 80,000 hours, which significantly reduces production downtime and maintenance costs.
- Easy Integration: In a chemical plant automation project, XL16E1 was integrated into the existing PLC – based system within a week. Its standard interfaces and simple configuration process made the integration seamless, saving time and resources.
- Strong Data – Processing Capabilities: In a food processing factory, XL16E1 was used to control multiple production processes simultaneously. It could process data from more than 20 sensors in real – time, adjusting the production parameters promptly. As a result, the production efficiency increased by 20%, and the product defect rate decreased by 15%.
4. Application Areas and Application Cases
- Application Areas: XL16E1 is suitable for a wide range of industries, including manufacturing, energy, chemical, food processing, and more. It can be used in process control, equipment monitoring, and automation of various industrial scenarios.
- Application Case: In a water treatment plant, XL16E1 was used to control the water purification process. By monitoring the water quality parameters and adjusting the dosage of chemicals in real – time, it improved the water treatment efficiency by 18% and ensured that the treated water met the strict quality standards.
5. Competitor Comparison
Compared with other similar products on the market, XL16E1 offers higher reliability, which means fewer system failures and lower maintenance costs. Its easy integration feature allows for faster implementation of automation projects, reducing the time and cost of system upgrades. The strong data – processing capabilities enable more complex control strategies, improving the overall efficiency of industrial processes.
6. Selection Suggestions
- Compatibility: When selecting XL16E1, ensure that it is compatible with your existing PLC system, sensors, and actuators. Check the interface types and communication protocols to avoid any compatibility issues.
- Installation Environment: Consider the environmental conditions where the device will be installed. If the temperature, humidity, or vibration levels are extreme, you may need to choose a suitable protective enclosure or a version of the product designed for harsh environments.
- Budget: Evaluate the cost of XL16E1 in relation to your project budget. Although it may have a relatively higher upfront cost, its long – term benefits such as high reliability, easy integration, and strong data – processing capabilities can result in significant cost savings in the long run.
7. Precautions
- Installation: Follow the installation instructions carefully to ensure proper wiring and grounding. Incorrect installation can lead to system malfunctions or even safety hazards.
- Safety: When operating or maintaining XL16E1, follow all safety regulations. Disconnect the power supply before performing any maintenance work to avoid electrical shock.
- Maintenance: Regularly inspect the device for any signs of damage or wear. Clean the device to prevent dust and debris from affecting its performance. Keep the firmware up – to – date to ensure optimal functionality.
Shanxi Runsheng Import and Export Co., Ltd. is your trusted partner. We provide sales and technical support for XL16E1 and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you whole – heartedly.
