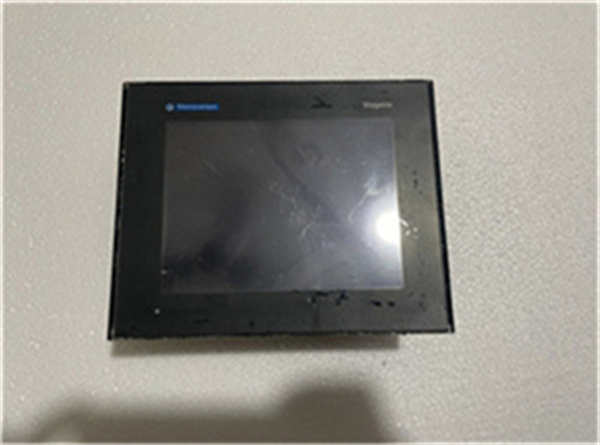

XBTGT6330

¥4,152.00

Parameters and specifications
Display type: backlit color TFT LCD
Display color: 65536 colors
Display resolution: 800 x 600 pixels SVGA
Monitor size: 12.1 inches
Processor: CPU RISC, 266 MHz
Memory:
SRAM: 512 Kb (for data backup)
Flash EPROM: 32 MB
Power Supply: Detachable spiral terminal, 24 V DC (external source), support 19.2V to 28.8V
Power: 30 W

Category:

Description

Size and weight
Overall dimensions: 313 x 239 x 56mm (L x W x H)
Product weight: 3 kg
series
The XBTGT6330 belongs to Schneider Electric’s Magelis XBTGT family, a compact and rugged family of touchscreen graphics terminals.

trait
Advanced touchscreen panel: Support for multiple languages including ASCII (European characters), Chinese (Simplified Chinese), Japanese (ANK, Kanji), Korean and Taiwanese (Traditional Chinese)
Real-time clock and memory: Support data backup and recovery
High brightness backlight: Backlight life up to 50,000 hours
Rich interfaces: including serial, Ethernet and USB interfaces, support a variety of communication protocols
Environmental adaptability: Meets a variety of environmental standards, such as IP65 (front panel) protection grade, suitable for various industrial environments

Parameters and specifications
Display type: backlit color TFT LCD
Display color: 65536 colors
Display resolution: 800 x 600 pixels SVGA
Monitor size: 12.1 inches
Processor: CPU RISC, 266 MHz
Memory:
SRAM: 512 Kb (for data backup)
Flash EPROM: 32 MB
Power Supply: Detachable spiral terminal, 24 V DC (external source), support 19.2V to 28.8V
Power: 30 W
Integrated connection type:
Digital input/output: Detachable spiral terminal
COM1 Serial link: Pin SUB-D 9, support RS232C/RS422/RS485 (<= 115.2 kbits/s)
COM2 Serial link: RJ45 RS485 (<= 187.5 kbit/s), Siemens MPI (187.5 kbits/s)
Ethernet TCP/IP: RJ45
2 USB Type A master ports (V1.1)
CF card slot (built-in, supports 128 MB to 1 GB)
