Description
Parameters and specifications:

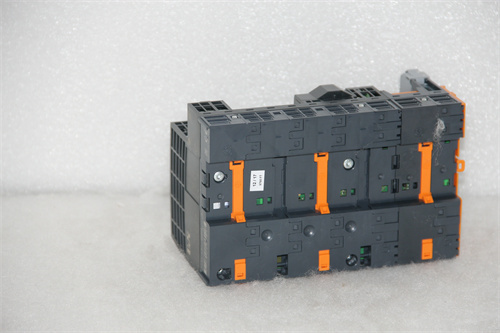

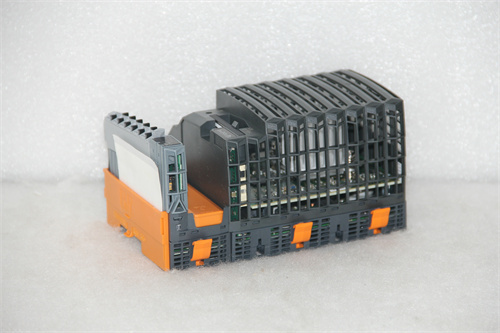

Product type: CPU module
Processor type: Celeron 266 comp
Standard memory RAM: 64 MB SDRAM
Interfaces: 1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
Cooling: No fan
Input voltage: 24VDC-15%/+20%
Input current: 2.2A (Max)
Rated output voltage: 24VDC
Allowable contact load: 10.0A
Power consumption: 10.5W
Size and weight:
Dimensions (W x H x D) : 150 x 99 x 85 mm
Weight: 0.7 kg
Features:
Function modularity: The X20CP1484 function module is a collection of program elements such as instructions, executable statements, etc. It refers to individually named procedures, functions, subroutines, or macro calls that can be accessed by name. Functional modularization is to divide the program into several functional modules, each functional module completes a sub-function, and then combine these functional modules to form a whole to meet the required functions of the entire system.
Compact and efficient: The fanless design is extremely compact, but the short cycle time of 800 µs still shows its power.
Real-time communication: With onboard Ethernet and USB, POWERLINK connectivity for real-time communication is also available.
Slot: There is one slot for modular interface expansion.
Functions:
X20CP1484-1 is a central processing unit (CPU) module, which is one of the main devices of electronic computers and the core accessories in computers.
