Description

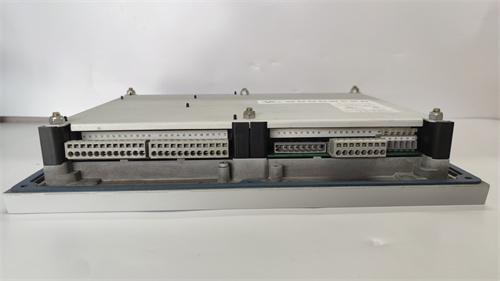

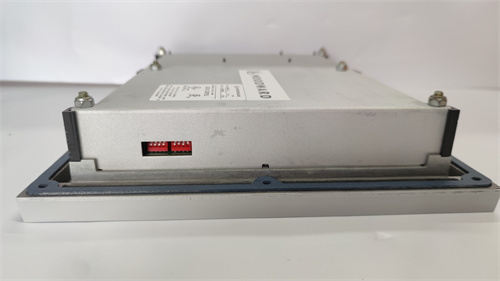

The WOODWARD EGCP-2 8406-121 is a digital control panel specifically designed for managing and automating voltage and frequency adjustments in generator sets. It is a comprehensive engine-generator control solution, widely used in various industrial and power generation applications.
Parameters:
Input Voltage: Typically 9-32 VDC.
Maximum Frequency Range: 50/60 Hz.
Output: 12.5 A.
Operating Temperature Range: -40℃ to +85℃, -20~+70°C.
Protection Class: IP 54.
Specifications:
Weight: Approximately 2.9 kg or 2KG.
Dimensions: Standard dimensions are 264.333 (LengthWidthHeight).
Control Capabilities: It can configure up to eight unmanned generator sets for base-load shaving, peaking, or standby power generation.
Series:
It belongs to the EGCP-2 series of control panels.
Features:
Flexible Configuration: Can be configured for isolated backup power stations or grid-connected control scenarios.
Powerful Processing: Designed for maximum application power of 30,000 kW.
Safe & Durable: Constructed with safety and durability in mind, suitable for complex and varying industrial environments.
Programmable System: Utilizes a PLC system with programmable functions, allowing for customized programming and settings.
Extensive Monitoring & Protection: Monitors and protects engine parameters such as cooling water temperature, lubricant pressure, overspeed, and battery voltage.
Functions/Applications:
Automated Operation: Automates the running, protection, and management of diesel or gas engine generator sets.
Engine Control: Performs tasks such as engine preheating, fuel solenoid valve control, engine start motor control, and overspeed protection.
Generator Synchronization: Synchronizes multiple generator units and performs automatic sequencing, start/stop control, and digital display of engine and generator data.
