Description

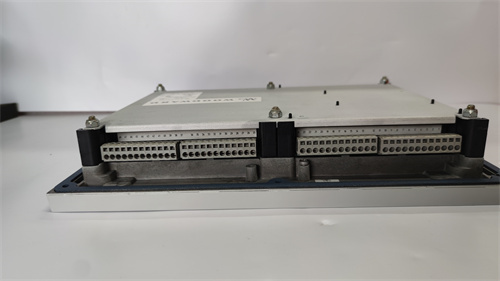

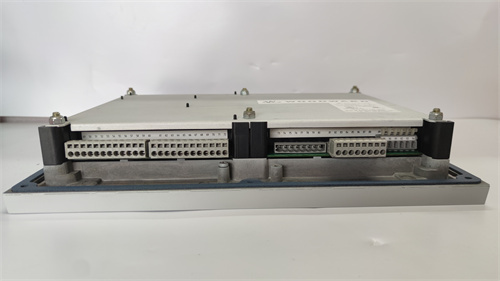

WOODWARD EGCP-2 8406-121 is a sophisticated engine-generator control module designed for comprehensive management and automation of diesel or gas engine generator sets. It’s widely used in various industrial applications where precise voltage and frequency regulation, as well as automated operational protection and management, are critical. Here’s an overview of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters:
Input Voltage: Typically ranges from 9-32 VDC, depending on the specific configuration.
Output: Maximum output of 12.5 A.
Frequency Range: 50/60 Hz.
Protection Class: IP 54, providing a certain level of protection against dust and water ingress.
Specifications:
Working Temperature: Ranges from -40℃ to +85℃ or -20°C to +70°C, depending on the specific model or application.
System Environment: Designed for use in standard ambient conditions.
System Capability: Powerful and programmable, offering extensive control and monitoring features.
Dimensions and Weight:
Dimensions: Typically measures 264.333 mm (length) x 4.3 mm (width) x 33 mm (height).
Weight: Approximately 2.9 kg or 2KG, depending on the exact configuration and accessories.
Series:
WOODWARD EGCP-2 8406-121 belongs to the EGCP-2 series of engine-generator controllers, which are known for their reliability and precision in managing generator sets.
Features:
Flexible Configuration: Can be configured to suit various applications, including isolated backup power stations or grid-connected control systems.
Powerful Engine Control: Includes features like engine preheating, fuel solenoid control, engine starter motor control, and engine speed monitoring with overspeed protection.
Safety and Durability: Designed for safe and durable operation in industrial environments.
Programmable PLC System: Features a PLC system with programmable functionality, allowing users to customize control logic and settings according to their specific needs.
Role/Application:
WOODWARD EGCP-2 8406-121 is primarily used for voltage and frequency regulation in generator sets, enabling automated operation, protection, and management of diesel or gas engine generators. Its maximum design application is for generator sets with a power rating of up to 30,000 kW. It’s suitable for use in a wide range of industries and applications where reliable and efficient generator control is essential.
