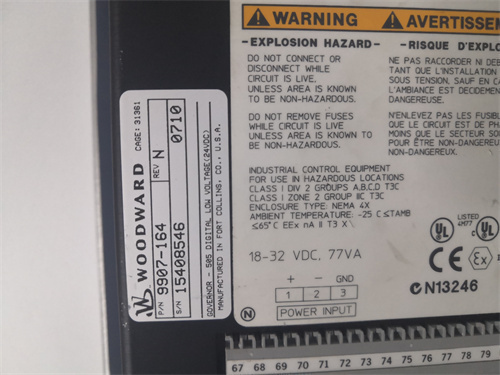

WOODWARD 9907-164

Description

Parameters and specifications
Model: 9907-164
Brand: WOODWARD
Manufacturer: Woodward
Series: 505 digital speed control turbine
Input voltage: +24 Vdc, 1 A
Keyboard/Display: 30 multi-function keyboards
Operating temperature: -4 to +140 ° F (i.e. -20°C to +60°C)
Storage temperature: -40 to +185 ° F (i.e. -40°C to +85°C)
Humidity standard: 20 and 55°C, 95% for 48 hours
Slot type: RS-232/RS-422 with Modbus protocol
Software version: 505View or OpView™
Size and weight
Dimensions: 14 W x 11 H x 4 D (in), or 170mm x 105mm x 32mm (another way to say it)
Weight: 9.11 pounds (i.e. about 4.13 kg), or about 120 grams (the latter may be an incorrect figure)
trait
High precision control: advanced digital microprocessor technology is used to achieve accurate control of fan speed, load and other parameters.
Rich control functions: including speed control, load control, compressor and turbine start-stop control, etc., to meet the control requirements under various complex working conditions.
Data acquisition and monitoring: The ability to collect and monitor data related to turbine performance, such as speed, temperature, pressure, etc., to ensure that the turbine is operating within a safe and efficient operating range.
Communication interface: Support a variety of communication interfaces, such as serial communication (RS-232, RS-485), Ethernet or fieldbus protocol (Profibus, Modbus), easy to exchange data with other devices and remote monitoring.
Self-diagnosis and fault detection: With self-diagnosis function, it can detect turbine faults and issue alarms, thereby improving system reliability and safety.
Highly flexible: Field operators can configure and change the equipment on the spot through menu-driven software integrated into the operator control panel at the front of the equipment.
Input interface: Includes 16 contact inputs (4 dedicated inputs and 12 programmable inputs) and 6 programmable current inputs from 4 to 20 mA.
