Description
Parameters & Specifications:

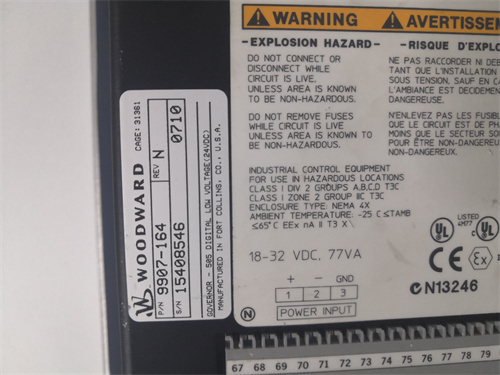

–Model: 9907-164
–Series: Part of the 505 and 505E series, originally developed, produced, and manufactured by Woodward12
–Input Voltage: +24 Vdc, 1 A1
–Operating Temperature: -4 to +140 °F1
–Humidity: 20 to 55 °C, 95% RH for 48 hours1
–Storage Temperature: -40 to +185 °F1
Dimensions & Weight:

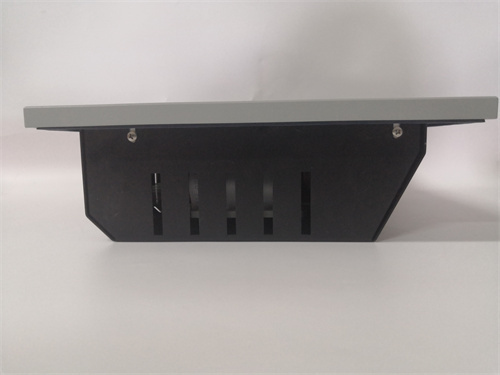

–Dimensions: Approximately 14″ wide x 11″ high x 4″ deep (inches)
Features:
–Advanced Microprocessor Technology: Utilizes an advanced digital microprocessor for precise control of fan speed, load, and other parameters1
–Menu-Driven Software: Allows field operators to configure and modify settings via an integrated operator control panel12
–Display: Features a two-line display with 24 characters per line for easy monitoring and control12
–Communication Interfaces: Supports multiple communication protocols, including RS-232/RS-422, Modbus, Ethernet, and fieldbus protocols1
–Self-Diagnostic and Fault Detection: Equipped with self-diagnostic capabilities to detect faults and issue alarms, enhancing system reliability and safety1
Functions:
–Turbine Control: Designed specifically for controlling steam turbines, turbine generators, and turbo-expanders12
–Speed and Load Control: Enables precise control of turbine speed and load, ensuring optimal performance and efficiency1
–Startup and Shutdown Sequences: Provides automatic startup and shutdown sequences, including critical speed avoidance, valve limiting, and shutdown priority indicators12
–Data Acquisition and Monitoring: Collects and monitors turbine performance data, such as speed, temperature, and pressure, ensuring safe and efficient operation1
–Remote Monitoring and Control: With its communication interfaces, it allows for remote monitoring and control, facilitating centralized system management
