Description
Parameters and specifications:

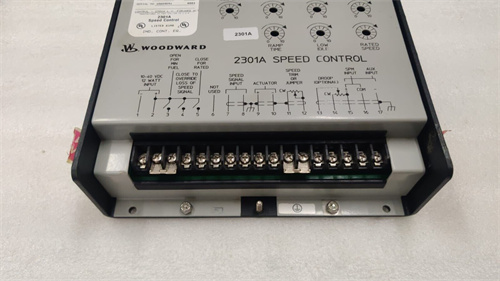

Model: 9907-014
Brand: WOODWARD
Purpose: As a speed control module (SCM) in a turbine control system, it is used to regulate the speed of the turbine and maintain it within the desired range
Control principle: Modular structure, easy operation, cost-effective, suitable for light industry machinery, oven, experimental equipment, heating/cooling and other temperature control range of 0 ~ 999℃ objects
Input/Output: Includes 16 digital inputs, 14 digital outputs and 8 analog inputs/outputs
Communication interface: Support RS232 or RS485 interface for programming and monitoring, support a variety of communication protocols, including Modbus, DNP3, Profibus and Ethernet/IP
Protection function: With a variety of protection functions, including overload protection, low oil pressure protection, high water temperature protection
Size and weight:
Input voltage: 24VDC
Output voltage: 24V DC
Input voltage range: 85-264V AC, 47-63 Hz or 110-370V DC
Product size: 166mm x 112mm x 36mm or 3.94 x 7.28 x 4.13 inches (100 x 185 x 105 mm)
Product weight: 1.3 kg
Series:
As part of the WOODWARD 9900 series speed control module
Features:
Speed sensing: Connects to a speed sensor that monitors the current speed of the turbine
Reference speed setting: The operator or control system can set the desired or target speed at which the turbine should operate
Control algorithm: The control algorithm is used to calculate the necessary adjustments needed to bring the turbine speed in line with the reference speed
Communication interface: It has a communication interface to exchange data with the central control system, supporting remote monitoring, diagnosis and control adjustment
Integration capabilities: Usually connected to other control modules responsible for functions such as load control, temperature control and vibration monitoring, ensuring the stability and efficiency of the entire turbine system
Installation and programming: easy installation, PLC hardware installation is simple, easy assembly. Easy to program, using WOODWARD’s GAP and ladder logic programming tools to generate application code
Functions:
Monitor and regulate the rotational speed of a turbine, such as a steam turbine, gas turbine or wind turbine, to ensure that it is operating at a specific speed to maximize efficiency and safety
