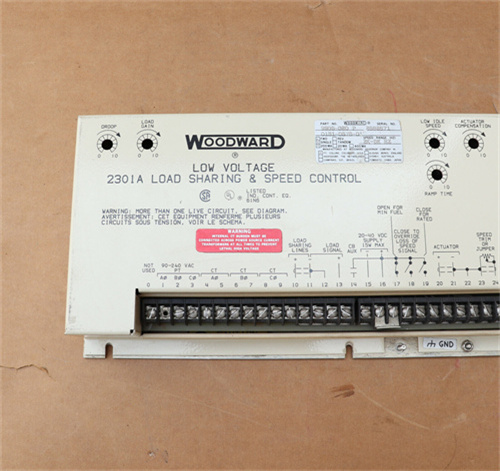

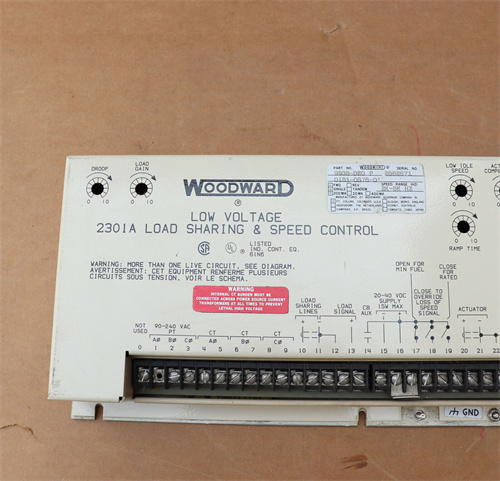

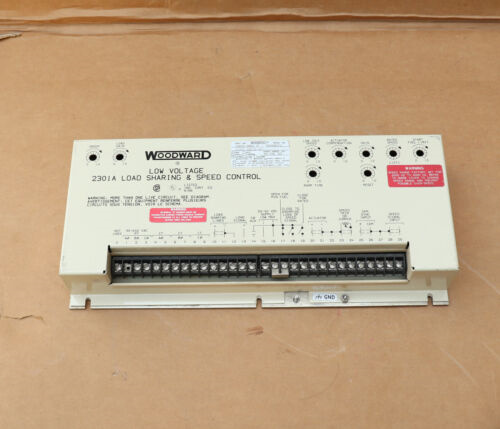

WOODWARD 9905-020

Description

‌Specifications & Parameters‌:

The Woodward 9905-020 belongs to the 9905/9907 series, which is designed to control the load sharing and speed of generators driven by diesel engines, gasoline engines, steam turbines, or gas turbines.
The 9905-020 may support functions such as data recording, fault diagnosis, and remote communication.
The controller adopts a modular design for easy installation and maintenance.

‌Function‌:

It provides isochronous or droop mode control. The isochronous mode is used for maintaining constant prime mover speed, while the droop mode adjusts speed based on load.
The 9905-020 can be used in single prime mover operations or in systems where two or more prime movers are controlled by the Woodward load sharing control system.

‌Weight & Dimensions‌:

The weight of the Woodward 9905-020 is approximately 1.8 kg.
The specific dimensions may vary slightly based on the exact model and configuration, but a typical controller in this series might have dimensions of 387.4182.661.9 mm.

‌Characteristics‌:

The 9905-020 is known for its high-precision control, utilizing high-accuracy sensors and actuators to improve system stability and reliability.
It is programmable, allowing users to customize control logic and algorithms based on their needs.
The controller is multifunctional, supporting features like data recording, fault diagnosis, and remote communication.

‌Application Areas‌:

The Woodward 9905-020 is suitable for applications requiring high precision and reliability in generator control, such as power plants, industrial automation, and other critical infrastructure.
It is particularly useful in environments where multiple prime movers need to operate in harmony to maintain stable power generation.
