Description

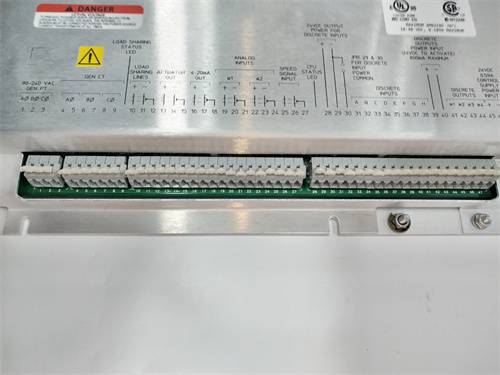

WOODWARD 8273-140 is a high-performance control module designed for industrial automation and related applications. Below is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Model Number: WOODWARD 8273-140 2301D.
Input Voltage Range: Typically AC 180~240V, but it is important to check the specifications for the exact range.
Output Voltage Range: DC 22~26V (or 24VDC).
Power: 140W.
Frequency: 50/60Hz.
Efficiency: 85%.
NVRAM: 8 KB.
Dimensions and Weight:
Dimensions: 166mm x 112mm x 36mm.
Weight: Approximately 375g or 2KG, depending on the version or configuration.
Series:
WOODWARD 8273-140 belongs to the WOODWARD series, specifically the 2301D product line.
Features:
Microprocessor-Based Design: Ensures efficient and precise control functions.

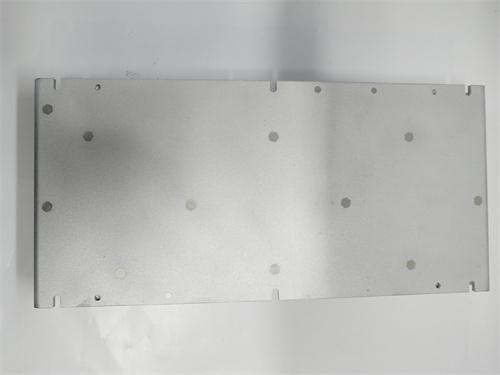

Durable Construction: Mounted on a metal baseplate, it offers structural strength and durability for various harsh working environments.
Flexible Configuration: The controller has configurable I/O ports, including an actuator output channel, an analog input, and an analog output channel.
Speed Control: It is designed for load sharing and speed control of diesel or gas-powered generators.
Flexible Software Configuration: The built-in software allows for flexible parameter modifications to adapt to different engine speed ranges, gear counts, and directional requirements.
Functions and Applications:
Engine Control: WOODWARD 8273-140 is used for load sharing and speed control of engines or generators.
Industrial Automation: It finds widespread application in industrial automation systems, including those used in power generation, compressors, pumps, and other equipment.
Monitoring and Maintenance: The controller can be used to monitor the speed and operational status of engines or generators, facilitating maintenance and fault diagnosis.
