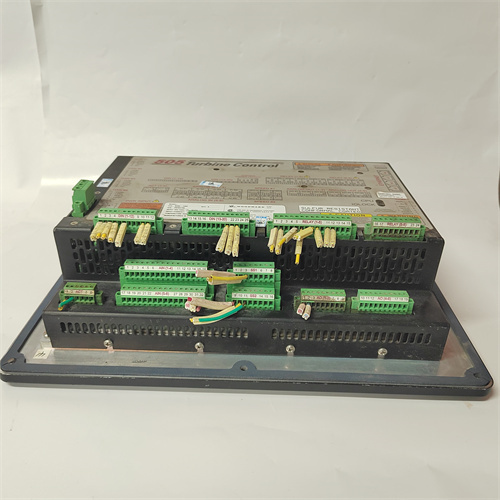

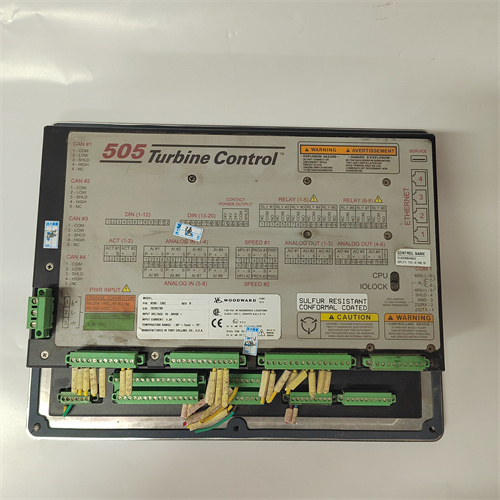

woodward 8200-1302

Description

‌Parameters & Specifications‌:

–‌Input Voltage Range‌: Typically 18-36 VDC (isolated), providing flexibility in system integration12.
–‌Operating Temperature Range‌: -22°F to 158°F (-30°C to 70°C), suitable for a wide range of environmental conditions12.
–‌Display‌: 8.4-inch LCD screen, offering a clear and intuitive interface for monitoring and control12.
–‌Communication‌: Equipped with Modbus communication port, enabling integration with other control systems for data exchange and remote monitoring1.
‌Dimensions & Weight‌:

–‌Dimensions‌: Approximately 170mm x 105mm x 32mm, a compact size for easy installation and integration4.
–‌Weight‌: Specific weight may vary, but as a compact industrial control module, it is designed to be lightweight for handling and mounting.
‌Series‌:

• Woodward 8200-1302 is part of the 505D series of digital governors, known for their reliability and advanced control capabilities5.
•
  ‌Features‌:

–‌Control Functionality‌: Primarily controls turbine speed, ensuring stable operation within the desired speed range1.
–‌Modularity‌: Adopts a modular design, allowing users to add or change modules as per application requirements1.
–‌High Stability & Reliability‌: Designed for high stability and reliability, with robust housing and excellent heat dissipation1.
–‌Self-Diagnostics‌: Equipped with self-diagnostic capabilities, aiding in timely detection and resolution of faults1.
–‌EMC Compliance‌: Complies with EMC anti-interference standards (EN 61000-6-2), ensuring stable operation in electromagnetic environments23.
‌Functions & Applications‌:

–‌Turbine Speed Control‌: Accurately controls turbine speed to maintain stable operation and meet system demands1.
–‌Monitoring & Alarming‌: Monitors system parameters and generates alarms in case of abnormal conditions, improving safety and reliability3.
–‌Remote Monitoring & Control‌: Enables remote configuration and monitoring through Modbus communication, enhancing operational efficiency1.
–‌Industrial Applications‌: Widely used in power generation, oil and gas, and other industrial sectors where steam turbine control is crucial
