Description

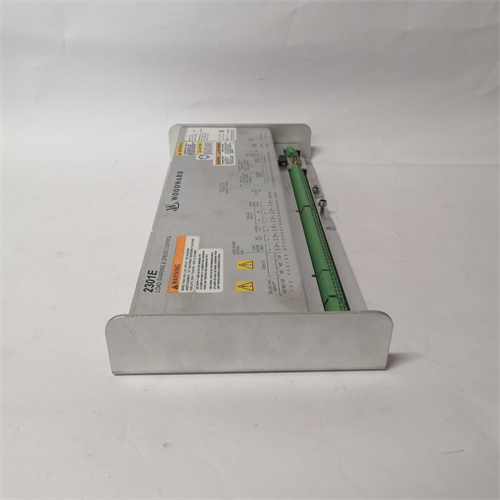

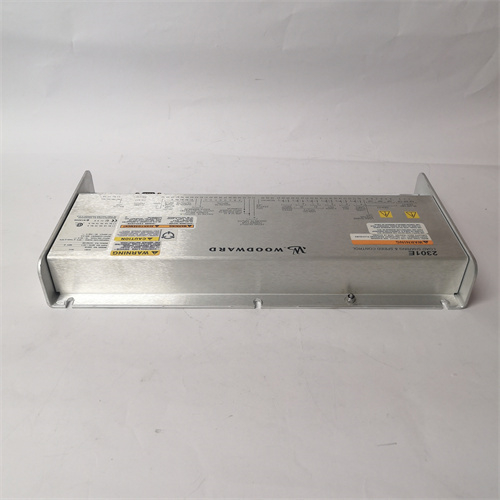

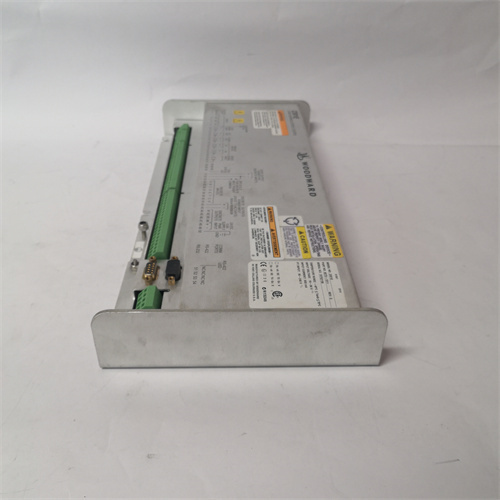

The Woodward 2301E 8273-1011 is a high-performance control module designed for a variety of industrial applications. Here is a summary of its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Input Voltage: Low voltage range of 18-36 VDC.
Analog Input: 4-20 mA channel with loop power supply.
Electromagnetic Compatibility (EMC): Meets EN 61000-6-2 standards for electromagnetic compatibility.
Dimensions and Weight:
Dimensions: Approximately 120mm x 70mm x 35mm (may vary depending on the specific model or configuration).
Weight: Typically lightweight for ease of installation and handling, but the exact weight may vary.
Series:
The Woodward 2301E belongs to a series of advanced control modules designed for industrial automation and control applications.
Features:
Monitoring and Protection: The module provides extensive monitoring of key parameters such as temperature, pressure, and current. It also incorporates protection mechanisms to prevent equipment overload, overheat, and other abnormal conditions.
Real-Time Monitoring and Feedback: The module offers real-time monitoring of engine or other equipment operating parameters, providing valuable feedback for timely adjustments and maintenance.
Fault Detection and Alarm: It features fault detection capabilities, monitoring the status of systems and sensors. In case of a fault, it triggers an alarm to alert users for prompt maintenance action.
Engine Protection: The module includes engine protection functions to prevent unsafe or damaging operation under abnormal conditions.
Communication Interfaces: It typically offers a variety of communication interfaces such as serial, Ethernet, and Modbus, enabling seamless integration with other system components and higher-level control systems.
Programmability: The Woodward 2301E 8273-1011 is programmable, allowing users to customize control programs based on specific application requirements.
Functions and Applications:
Control and Automation: The Woodward 2301E 8273-1011 is used primarily in engine control and automation systems, providing precise control and monitoring of equipment operation.
Data Recording and Analysis: Some models may support data recording functions, enabling historical data analysis for fault diagnosis and performance optimization.
