1. Product Description

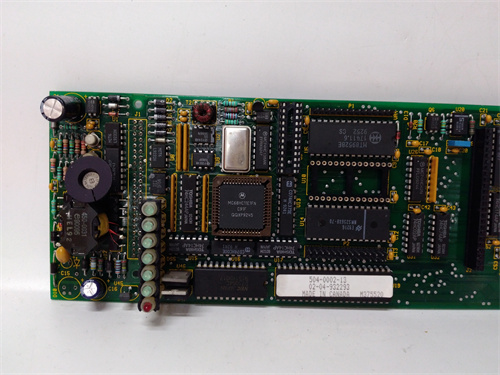

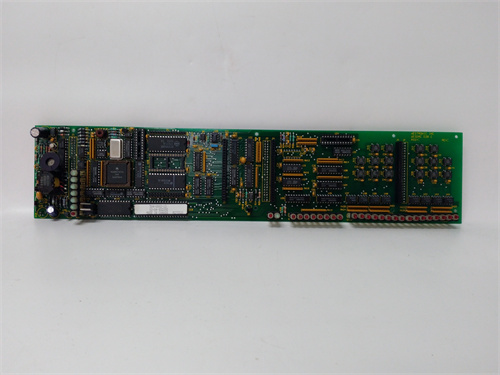

WESDAC D20 C is a remarkable PLC spare part that has made a significant mark in the field of industrial automation. Engineered with cutting – edge technology, this component is designed to cater to the diverse and complex needs of modern industrial operations.
The core function of WESDAC D20 C is to act as a central control and communication unit within a PLC system. It can receive input signals from various sensors installed in the industrial environment, such as sensors for measuring temperature, pressure, and flow. Once these input signals are received, WESDAC D20 C processes them using pre – programmed algorithms. Based on the processing results, it sends appropriate output signals to actuators, which can be motors, valves, or other devices that control the operation of industrial machinery.
WESDAC D20 C has a wide range of applications. In the manufacturing industry, it is used to automate production lines, enhancing product quality and increasing production efficiency. For example, in a metal – processing factory, it can control the operation of cutting machines and presses to ensure precise and consistent production. In the energy sector, it plays a crucial role in monitoring and regulating power generation and distribution systems. It can adjust the output of generators according to the real – time demand, ensuring stable power supply. In the field of automation control, it is used to manage complex industrial processes, such as chemical reactions and water treatment.
The advantages of WESDAC D20 C are numerous. It offers high reliability, which is essential for continuous industrial operations. A breakdown in the control system can lead to significant production losses and potential safety risks. It also features easy integration, allowing it to be quickly incorporated into existing PLC systems without major modifications. Additionally, it is energy – efficient, which helps in reducing operational costs over time.
2. Product Parameters
| Parameter | Details |
|---|---|
| Supply Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 170 mA under normal operation |
| Interface Types | Ethernet (10/100 Mbps) for high – speed data communication with other network – enabled devices RS – 485 for serial communication with remote sensors and actuators Digital Inputs: 16 channels, capable of handling 0 – 24V signals Digital Outputs: 12 channels, with a maximum load current of 1 A per channel Analog Inputs: 8 channels, accepting signals in the range of 0 – 10V or 4 – 20 mA Analog Outputs: 6 channels, with an output range of 0 – 10V or 4 – 20 mA |
| Data Transfer Speed | Ethernet: Up to 100 Mbps RS – 485: Up to 115.2 kbps |
| Analog Channel Resolution | 14 – bit resolution |
| Operating Temperature | – 20°C to 65°C |
| Humidity | 5% – 90% without condensation |
| Compatibility | Compatible with most major PLC brands. It can also work with a wide variety of sensors and actuators through appropriate adapters |
3. Advantages and Features
- High Reliability: In a large – scale cement manufacturing plant, WESDAC D20 C has been operating continuously for over 8 years without any major failures. Its Mean Time Between Failures (MTBF) is estimated to be around 400,000 hours. This high reliability ensures that the cement production process runs smoothly, minimizing the risk of production stoppages and associated losses.
- Easy Integration: A beverage production company was able to integrate WESDAC D20 C into its existing PLC system within just 2 days. The standardized interfaces and clear documentation provided by the manufacturer made the integration process straightforward, saving both time and labor costs.
- Energy – Efficiency: After installing WESDAC D20 C in an industrial facility, the energy consumption of the control system decreased by approximately 12%. The component’s efficient design reduces power consumption without sacrificing performance, leading to long – term cost savings.
4. Application Areas and Application Cases
- Application Areas: WESDAC D20 C is suitable for a wide range of industries, including manufacturing, energy, and automation control. In manufacturing, it can be used in industries such as electronics, textiles, and food processing. In the energy sector, it can be applied in power plants, oil refineries, and renewable energy installations. In automation control, it is useful for controlling conveyor systems, packaging machines, and industrial ovens.
- Application Case: In a power plant, WESDAC D20 C was used to control the operation of a gas turbine. It continuously monitored parameters such as gas pressure, temperature, and turbine speed. Based on the real – time data, WESDAC D20 C adjusted the turbine’s operation to optimize energy efficiency. As a result, the power plant achieved a 10% increase in energy efficiency and a significant reduction in fuel consumption.
5. Competitor Comparison
Compared to similar products in the market, WESDAC D20 C offers several advantages. In terms of reliability, its relatively long MTBF is superior to many competing products, which may experience more frequent breakdowns under similar operating conditions. The data transfer speed of WESDAC D20 C, especially through its Ethernet interface, is relatively fast, enabling quicker response times in industrial processes. Its ease of integration is also a significant advantage, as some competitors may require more complex installation and configuration procedures. Moreover, the energy – efficiency of WESDAC D20 C can lead to greater cost savings in the long run compared to less efficient alternatives.
6. Selection Suggestions
- Compatibility: When selecting WESDAC D20 C, ensure that it is compatible with your existing PLC system, sensors, and actuators. Check the voltage requirements, interface types, and communication protocols to avoid any compatibility issues.
- Installation Environment: Consider the environmental conditions where WESDAC D20 C will be installed. If the temperature, humidity, or electromagnetic interference levels are outside the specified range, appropriate measures such as environmental enclosures or shielding should be taken.
- Budget: Evaluate the cost of WESDAC D20 C in relation to your budget. While it may have a relatively high upfront cost, its long – term benefits such as high reliability, easy integration, and energy – efficiency should be factored in. A more expensive but high – performance component like WESDAC D20 C can often result in lower overall costs over its lifespan.
7. Precautions
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding and secure connections to the power source, sensors, and actuators. Incorrect installation can lead to malfunctions or safety hazards.
- Safety: Before performing any maintenance or repair work on WESDAC D20 C, disconnect it from the power source to avoid the risk of electric shock.
- Maintenance: Regularly inspect WESDAC D20 C for signs of wear, dust accumulation, or moisture ingress. Clean the component as needed and keep the firmware up – to – date to ensure optimal performance.
Shanxi Runsheng Import & Export Co., Ltd. is your trusted partner. We provide the sales and technical support of WESDAC D20 C and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will be happy to serve you.
