Description

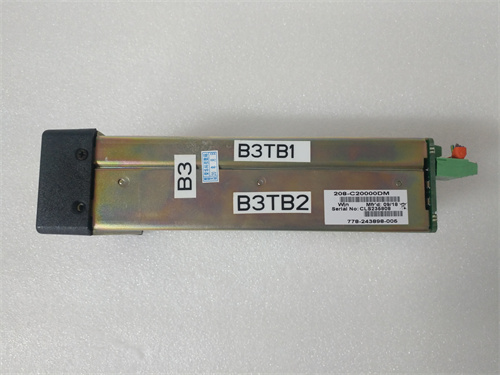

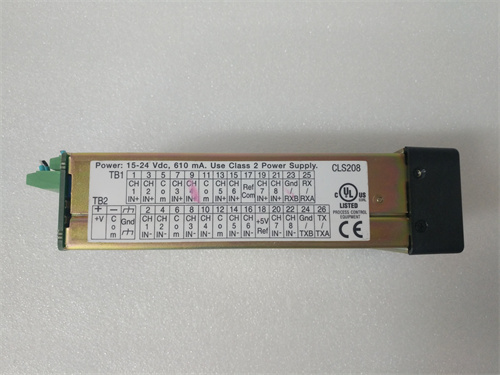

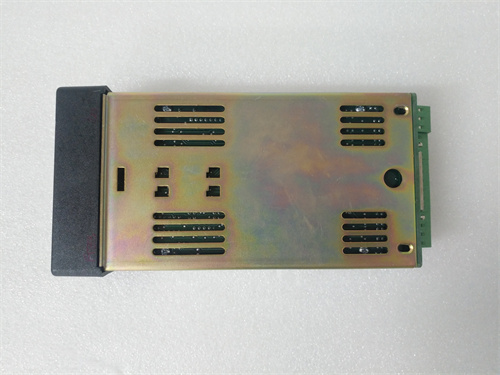

The WATLOW ANAFAZE CLS208 is a system module produced by Watlow Electric Manufacturing Company as part of the ANAFAZE modular process control system. The following are the detailed parameters, specifications, dimensions, weight, series, features and functions of the module:
Parameters and specifications:
Inputs: Has 16 analog inputs (0-10VDC or 4-20mA), 8 digital inputs (24VDC), and 1 external reference input (0-10VDC).
Output: 16 analog outputs (0-10VDC or 4-20mA) and 8 digital outputs (24VDC) are available.
Power requirements: 90-250VAC, 47-63Hz, 180VA Max.
Control function: Support PID control, switch control, slope/heat preservation control.
Size and weight:
Dimensions: 43.2 cm x 38.1 cm x 8.9 cm (17″ x 15″ x 3.5″).
Weight: 6.4 kg (14.1 lb).
Series and Brand:
Series: ANAFAZE series.
Brand: Watlow.
Features:
Communication capabilities: Support for RS-232 serial communication and ANAFAZE communication protocols makes it easy to integrate into larger control systems.
Versatility: As part of ANAFAZE’s modular process control system, its inputs and outputs allow for precise control of a wide range of process variables.
Temperature control: In some applications, it is used as a temperature controller in a wide range of industrial applications, including manufacturing, chemicals, food and beverage, medical devices, semiconductor production, and more.
Functions:
Industrial Automation and control: Used to monitor and control various parameters in industrial processes, such as temperature, pressure, etc., to ensure that these parameters remain within the preset target range.
Integration and communication: Due to its communication capabilities, it can exchange and integrate data with other equipment, monitoring systems or computers, thus realizing the sharing and coordination of information throughout the industrial system.
