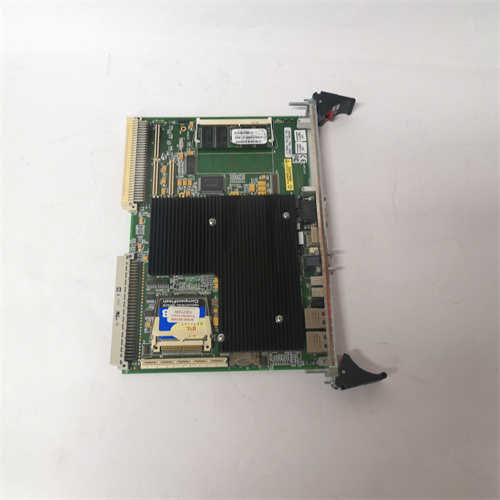

VMIVME-7750

Description

argument
Processor: Up to 1.26 GHz Pentium III processor with 512 Kbyte advanced transfer cache
Memory: A single 144-pin SODIMM is used with a maximum memory capacity of 512 Mbyte PC133 SDRAM
Graphics Adapter: The built-in 815E chipset AGP graphics adapter supports high-resolution graphics and multimedia quality video, and the adapter is complemented by 4 Mbyte external synchronous DRAM cache and a high-bandwidth 64-bit data interface
Video resolution: Screen resolution up to 1,600 x 1,200 x 256 colors (single view mode) is supported
specification
Chipset: Intel 815E chipset with a front end bus rate of 133 MHz
Ethernet Controller: Support for Ethernet LAN with two Intel Ethernet controllers (one 82559 and one inside Intel chipset ICH2) with 10BaseT and 100BaseTX options
System bus: 133 MHz system bus is implemented through the Intel 815E chipset
Operating system support: ows 2000, VxWorks, Solaris, QNX, LynxOS, and Linux are supported
Size and weight
Dimensions: 170mm x 105mm x 32mm
Weight: About 120g
series
It belongs to the VMIVME series
trait
High-performance processor: The Pentium III processor has 32-bit addressing and 64-bit data bus, and the superscalar architecture allows three instructions to be executed per clock cycle
Dual-port DRAM: The DRAM connects to the VME dual-port
Graphics support: Built-in SVGA support, with 4 MB DRAM display cache, support for multimedia quality video
Ethernet LAN support: Support for remote LAN boot, using Lanworks Technologies BootWare to provide NetWare, TCP/IP or RPL network protocols for remote boot
Rich I/O interface: including two RS232 serial ports, PS/2 keyboard and mouse connector, USB interface
Watchdog timer: Provides software programmable watchdog timer to ensure stable system operation
Non-volatile SRAM: Provides 32K bytes of non-volatile SRAM for data storage
Embedded Smart VME Bridging: Support for embedded smart VME bridging, allowing compatibility with the most demanding VME applications
