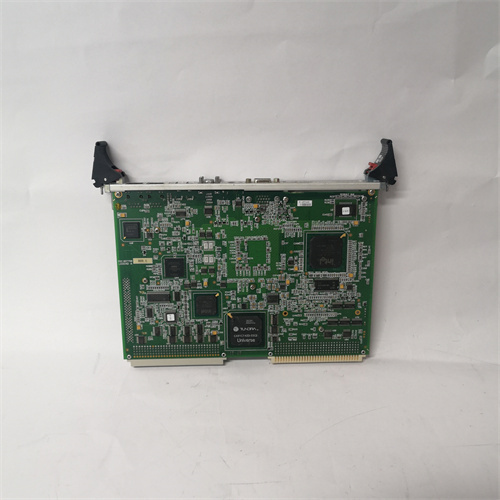

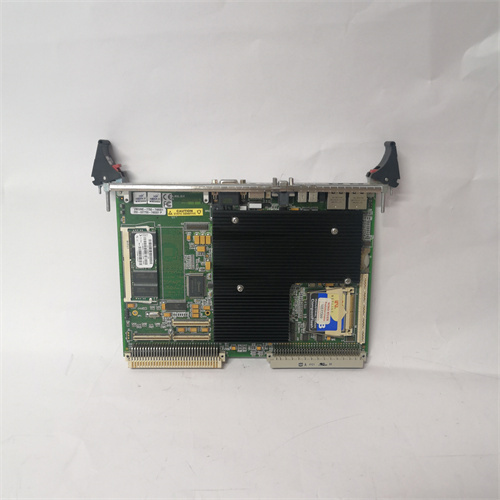

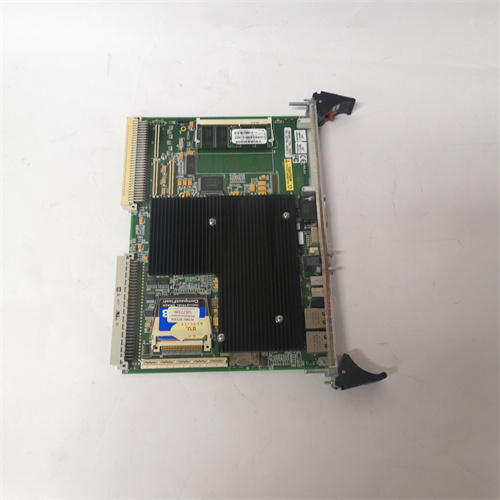

VMIVME-7750

Description

Parameters and specifications

Processor:
The initial version is likely to be powered by a Pentium® III processor up to 1.26 GHz with 512 Kbyte advanced transfer cache
The other configuration uses a Freescale PowerPC 7447A processor at 1.267GHz
Memory:
The initial release supports PC133 SDRAM of up to 512 Mbyte, achieved through a single 144-pin SODIMM
The other configuration supports up to 4GB DDR2 SDRAM
Storage:
The initial version has a built-in 815E chipset AGP graphics adapter, supplemented by 4 Mbyte external synchronous DRAM cache
Supports the CompactFlash Type II card as the storage medium

Network interface:
It is equipped with two Intel Ethernet controllers (one for the 82559 and the other for the Intel chipset ICH2 internal controller), supporting 10BaseT and 100BaseTX
The other configuration provides two Gigabit Ethernet interfaces with support for RJ-45 and fiber
Display interface:
Supports high resolution graphics and multimedia quality video up to 1,600 x 1,200 x 256 colors (single view mode)
The other configuration supports VGA and DVI-D ports with a maximum resolution of 1920×1200

Size and weight

Dimensions (for specific models) : 149mm x 74mm x 20mm (L x W x H)
Another model may be different, such as 170mm x 105mm x 32mm
Weight (for specific models) : Approx. 120g
