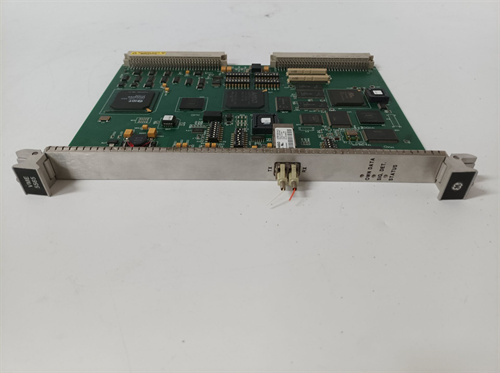

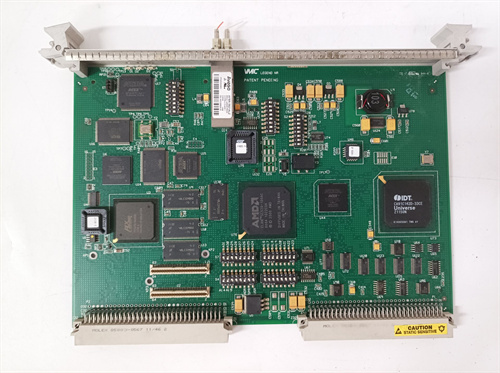

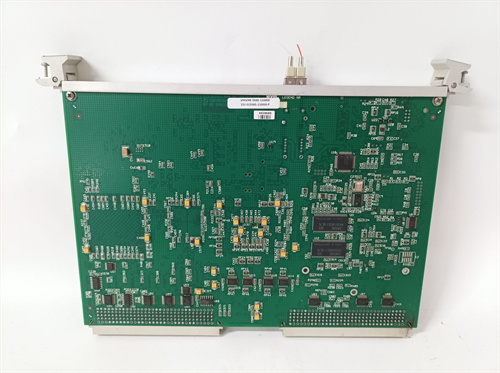

Description
trait
High-speed data transmission: Data sharing between multiple VME systems is achieved through a fiber optic network with network transmission rates up to 170 Mbyte/s.
Dynamic packet size: Packet sizes from 4 to 64 bytes are supported.
Fiber connection: The connection with multi-mode fiber can be up to 300 meters, and the connection with single-mode fiber can be up to 10 kilometers.
Reflective memory: Data written to the memory of one node is also written to the memory of all nodes on the network.
High reliability and fault tolerance: Supports patented fault tolerance operations to improve system reliability.
Extensive process control capabilities: Support for a variety of control algorithms and FBMS for a wide range of process applications.
argument
Interface: VMEbus
Number of channels: 16
Analog input resolution: 16 bits
Analog output resolution: 16 bits
Digital I/O: 32 lines
Operating temperature range: -40℃~ +85℃
Input voltage: 5VDC
Power consumption: 10W
Network transfer rate: 43 Mbyte/s(4-byte packet) to 170 Mbyte/s(64-byte packet)
VME transfer rate: 40 Mbytes
Memory capacity: 64 Mbyte or 128 Mbyte SDRAM reflected memory
specification
Size:
6U VMEbus form factor (some sources)
96mm x 48mm x 16mm (another source)
36.3cm×19.6cm×20.6cm (control module size)
Weight:
200g (some sources)
Approx. 1.2kg (another source)
1.26 kg
