Description
argument
Analog output channels: 32 high quality analog output channels with 12-bit resolution
Output impedance: 0.8Ω
Output voltage range: unipolar (0 to +10V, 0 to +5V, zero to +2.5V) or bipolar (±2.5, ±5 and ±10V) software optional
Output current: can output or receive 10 mA at ±10V voltage
specification
Each output: A dedicated D/A converter (DAC)
Calibration and self-test: initiated by the VME bus system reset or by the execution of software commands
Offset and gain coefficients: During calibration, a table of offset and gain coefficients is compiled and stored in RAM
trait
Random update: non-scanning update
Dual buffered output: Support software or external synchronous updates
Single reference potentiometer: Used for calibration and regulation
Automatic calibration: can be started by reset or software command
Self-test: With self-test function, and through the front panel status indicator

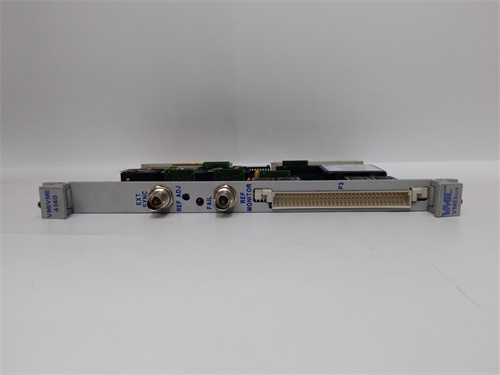

Front panel access: Includes analog output connectors and reference voltage access
