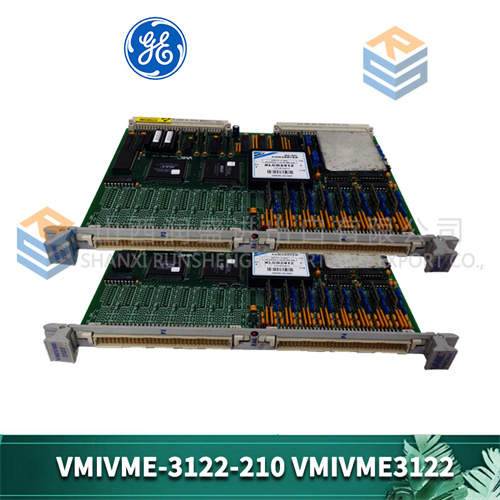

Description
Parameters and Specifications:
Resolution: 16-bit digital resolution
Gain: Programmable gain (x1 or x10)
Conversion Rate: 381 Hz to 100 kHz (optional, high-performance option), 381 Hz to 50 kHz (optional, standard performance option)
Input Channels: 16, 32, or 64 differential or single-ended analog inputs
A/D Converter Range: ±2.5 V, ±5 V, ±10 V, 0 to +5 V, 0 to +10 V
Data Buffer: 16 to 1,024 words of dual-port data buffer
Dimensions and Weight:
Dimensions: 1326*2235mm
Series:
Belongs to the GE VMIC VMEbus analog input/output product series.
Features:
High-Performance: Offers high-speed conversion and scanning capabilities.
Flexibility: Supports various operation modes including auto-scan, data burst, and external synchronization.
Programmability: Gain, channel block size, and buffer size can be programmed.
Interfacing: Directly connects with VMIC’s signal conditioning circuit boards.
Synchronization: Multiple boards can be synchronized to start scans simultaneously.
Protection: Over-temperature, over-voltage, and over-current protection.
Functions:
Analog to Digital Conversion: Converts analog signals from sensors, thermocouples, etc., to digital values.
Data Acquisition: Used in data acquisition systems for real-time monitoring and control.
Automation: Supports factory automation and process control applications.
Training and Simulation: Suitable for training simulators and laboratory instruments.
