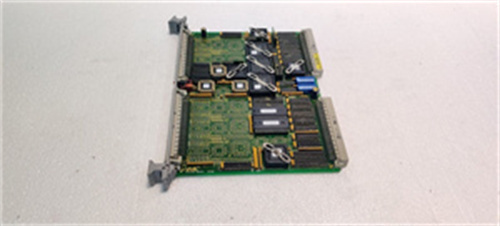

VMIVME-2540

Description

1.‌Parameters and Specifications‌:

• Model Number: VMIVME-2540, indicating its unique identity within the product line.
• Measurement Capabilities: Supports event counting up to 4 giga events, frequency measurement from 1.16 x 10^-3 Hz to 2.5 MHz, and pulse width measurement with high resolution.
• Generation Capabilities: Offers pulse sequence/square wave generation, timer/periodic interrupt generation, and quadrature position control.

2.‌Dimensions and Weight‌:

• Dimensions: Measuring approximately 115mm x 48mm x 150mm, the VMIVME-2540 is compact yet powerful1.
• Weight: Weighing approximately 1.2kg, it is designed for easy installation and integration into industrial systems1.

3.‌Series‌:

• The VMIVME-2540 belongs to the VMIC/GE Fanuc series of industrial automation boards, designed for a wide range of applications
•

4.‌Features‌:

• High-Precision Measurement: Provides high-accuracy digital measurement capabilities for various parameters.
• Flexible Programming: Equipped with a 15 MHz 68HC000 CPU, it offers a simple, command-driven user interface for easy programming and configuration3.
• Multi-Channel Capability: Supports up to 24 channels for digital signal measurement and generation, with options for 4, 8, 16, or 24 channels3.
• ANSI/IEEE Compliant: Uses ANSI/IEEE standard 754-1985 for 32-bit floating-point operations4.

5.‌Functions and Role‌:

• The VMIVME-2540 functions as a smart counter/controller in industrial automation systems.
• It is used in various applications such as rotation axis instruments, automotive testing, robotics, medical equipment, and more4.
• By providing precise measurement and control capabilities, it enhances the overall performance and reliability of industrial systems.
