Description
Specifications and parameters
Input current : 500mA
Output voltage : 24VDC
Output power : 360W
Input voltage range : 85~264VAC
Maximum output current : 15A
Operating temperature range : -25~70℃
Dimensions and weight
Dimensions : 115mm x 48mm x 150mm
Weight : approx. 1.2kg
function

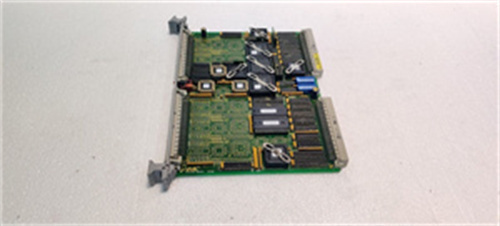

As an intelligent counter controller module, the VMIVME-2540-000 is capable of calculating up to four Giga events and is equipped with 24 discrete output channels that can be programmed to accommodate a wide range of extreme voltage levels with an onboard jumper module option.
Other features
resolution : 24 output channels provide 12-bit resolution.
Current capability : Capable of providing and absorbing current up to 10 MA at a rate of +/- 10V.
Off-line testing : The analog input is designed to be disconnected from external circuits to facilitate off-line testing.
VMEbus interface : The module is designed with a VMEbus slave interface, supporting 4, 8, 16 or 24 channels of digital signal measurement and signal generation.
The VMIVME-2540-000 is a specific module of the VMIC/GE Fanuc board with powerful counting and control capabilities for industrial automation applications requiring high precision and reliability
