Description
Parameters & Specifications:
Series: VMIC Megamodule series

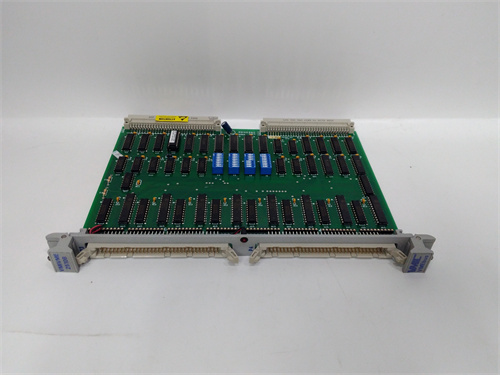

Type: 64-bit TTL Digital Input/Output Module
Control and Data Registers: Independent board address decoding
Fault Detection: Built-in test logic for fault detection and isolation
Dimensions & Weight:
Dimensions: 26*25*24 (unit not specified, likely mm)
Features:
Programmable I/O Directions: Each 8-bit port’s direction can be individually programmed
Current Capacity: 64 mA sink current capability (15 mA source)
Memory Address Mapping: Designed with two sets of board address switches for efficient memory address mapping of CSR and I/O addresses
Data Transfer: Supports 8-bit, 16-bit, and 32-bit data transfers
High Reliability: Features high-reliability DIN-type I/O connectors
Built-in Test Function: Specific hardware designed to support built-in test functionality
Ethernet Support: Supports Ethernet Modbus TCP/UDP/IP for communication
Redundancy: Provides dual-path communication redundancy and supports STP, RSTP, and proprietary redundancy schemes
Modbus Communication: Ten Modbus TCP/IP sockets allow simultaneous communication with multiple masters
Functions:
Control and Data Processing: Designed as a multifunctional control board module for various control and data processing tasks, including data acquisition, communication, motion control, and signal processing
Real-time Monitoring and Control: Capable of real-time monitoring of input signals and executing control operations to ensure system performance
Programmability: Allows user-defined control logic and algorithms to meet specific application requirements
Fault Diagnosis and Alarming: Detects faults or anomalies, provides diagnostic information, and generates alarms to notify operators
