Description
function :

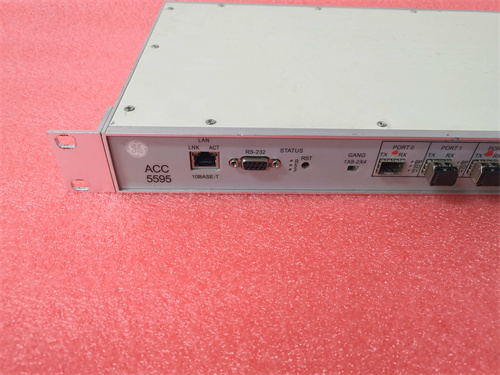

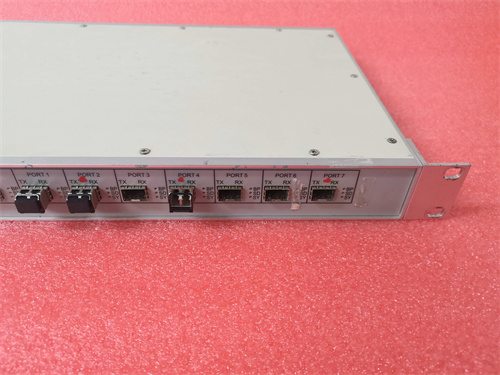

The VMIAC-5595-208 is a reflective memory hub assembly designed for use in Abaco Systems’ 5565 series. It is the core component of a reflective memory network that facilitates high-speed data communication between different nodes or devices.
The equipment is particularly suitable for cluster systems that require high-speed data transmission and real-time communication, as well as industrial automation and control systems that require high system reliability and stability
Specifications and parameters :
Input voltage: 110V-380V
Current: 1A-30A
Power: 5W-130W
Running speed: 2 Gb/s, which can realize fast data exchange between connected devices
Number of supported nodes: Up to 256 nodes are supported in a network
Operating temperature range: -40℃-+85℃
Relative humidity: 5%-95%
Output signal: voltage output
Automatic bypass function: Automatically bypass defective or disconnected nodes when signal loss or loss of effective synchronization mode is detected
Weight :
The weight is 30g
Size :
The dimensions are 44mm x 31mm x 22mm
