Description
Parameters and specifications:
Input voltage: 24V DC.
Output power: 10W.
Frequency (speed) measurement range: 0.5Hz-20 kHz.
Output voltage linear range: -4… -20V (the supply voltage is -24V).
Maximum range of output voltage: -1… -22V.
Output voltage: -12V (symmetrical measurement range at both ends).
Internal resistance: 100k.
Response time: 15.
Accuracy (all data relative to full scale) : Linear error, preprocessor CON0X1 connecting different sensors error between ≤1.0% to ≤6.0%.
Size and weight:
Dimensions: 140 mm x 95 mm x 82 mm.
Weight: About 0.7-1kg
Series:

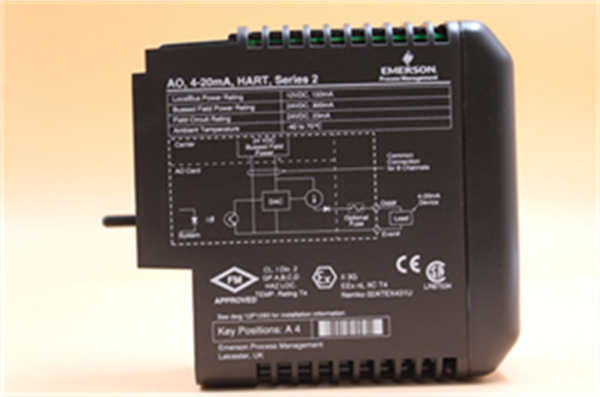

DeltaV Series: The VE4005S2B1 is a standard I/O terminal unit in the DeltaV decentralized control system.
Features:
Flexible interface design: Available for NAMUR, 12 V and 24 V sensor signal levels, each channel can be configured for pulse counting or frequency measurement.
User-friendly design: The power/controller carrier can be installed in place with a single T-DIN rail, and the I/O interface carrier and I/O terminals can be easily inserted.
Modular design: Based on the modular design method of DeltaV system, users can add I/O carriers according to needs to achieve efficient operation of I/O subsystems.
Power bus design: The power/controller carrier contains an internal power bus, eliminating the need for external cables to connect the system power to the DeltaV controller and the I/O interface carrier.
Protection mechanism: with open circuit and short circuit protection, and reverse protection.
Functions:
Industrial Automation Components: EMERSON VE4005S2B1 is a powerful industrial automation component that can be used in a wide range of automation control systems in the petrochemical, power, steel, pulp and paper, and pharmaceutical industries.
