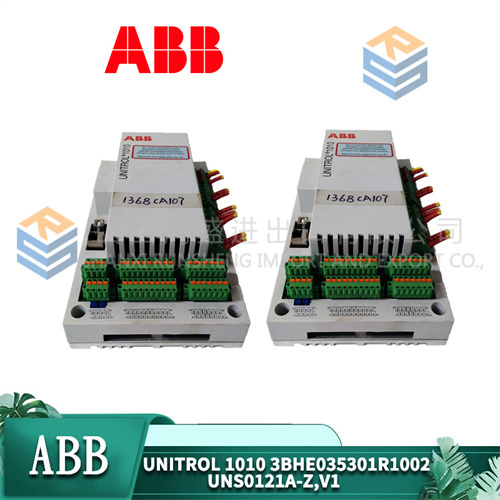

UNITROL 1010

Description

trait
Dual channel support: Built-in support for dual channels for advanced load distribution in parallel running units.
Rotating diode monitoring: With rotating diode monitoring function.
Automatic synchronization: Has the automatic synchronization function.
Multiple communication options: Provides multiple integrated communication options.
High performance: IGBT semiconductor devices based on advanced microprocessor technology and allowing current outputs up to 10ADC for continuous operation.
Flexible expansion: Up to 16 I/O modules can be expanded.
Power System monitoring: Used to monitor and control power systems, generators, transformers and other equipment to provide accurate measurements and reports.
High reliability: High performance in harsh conditions and different temperature ranges, and in full compliance with DNV and UL standards.

Parameters and specifications
Rated excitation current: 10 ADC
Rated voltage: 350 VDC
Processor: 32-bit RISC processor up to 200 MHz
I/O points: up to 256 points
Communication interface: Support RS232, RS485, Ethernet and other interfaces
Power supply voltage: 24V DC
Power consumption: 20W
Operating temperature range:
-25°C to +70°C (some data shows -20°C to +50°C)
Storage temperature: -40°C to +85°C
Size and weight
Size:
Approximately 225 mm x 165 mm x 80 mm (one way to say it)
230mm x 140mm x 200mm (another word)
170mm x 105mm x 32mm
Weight:
About 2.5 kg (one way to say it)
15 kg
About 120g
