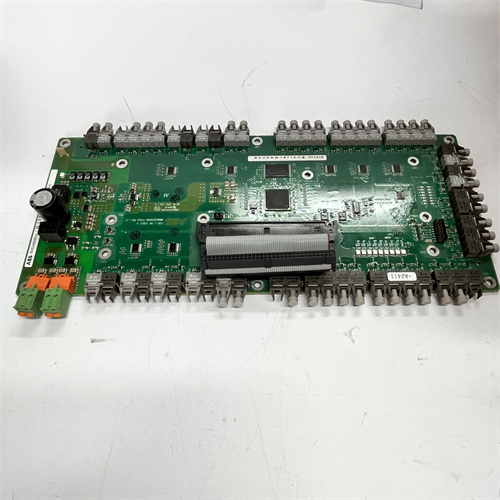

UFC921A101

Description

trait
Monitoring function: Designed to monitor various parameters of gas turbines, such as speed, temperature, pressure, etc.
Protection function: Can detect and respond to gas turbine may occur abnormal conditions, such as high temperature, low oil pressure, overload, etc., to prevent equipment damage or accidents.
Control function: Integrated with the control system of the gas turbine to achieve accurate control of the gas turbine and adjust the operating parameters to meet the requirements of different load conditions.
Reliability: It has high reliability and can operate stably in harsh working environment.
Self-diagnostic function: It may have a self-diagnostic function to detect its own working status and issue an alarm when there is a fault or anomaly.
High-bandwidth signal transmission: As ABB’s PXI series high-bandwidth matrix switch module, it supports high-bandwidth signal transmission and meets the needs of fast signal routing.
High-density switching channels: With high-density switching channels, multiple signal sources and receivers can be connected simultaneously.

argument
Voltage: 24VDC
Current: May vary according to different application scenarios, it is said to be 100-400A, and it is also said that the maximum of each channel is 5mA
Output power: 360W
Input voltage range: 10~30VDC
specification
Model: UFC921A101 3BHE024855R0101
Usage: In the gas turbine control system, it is used to monitor, protect and control the operating status and performance of the gas turbine
Size and weight
Dimensions: 96mm x 48mm x 16mm
Weight: About 1.2kg
