Description
Size and weight:
Size: 100×112×45(22.5)mm
Series:
The UFC762AE101 is a general purpose controller family from ABB.
Features:
Versatility: Provide rich input and output interfaces, support a variety of communication protocols and interface standards.
High reliability: Industrial design, with high anti-interference ability and stability, adapt to a variety of harsh industrial environment.
Flexibility: Support modular design, easy to expand and upgrade, to meet the different scale and functional requirements of the control system.
Fast response: Provides fast data acquisition and processing capabilities to achieve real-time monitoring and control of external devices.
Easy integration: compatible with a variety of communication protocols and interface standards, easy to integrate and upgrade with existing systems.
Functions:

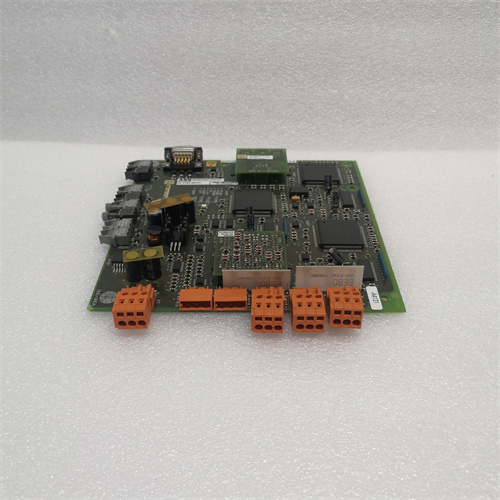

UFC762AE101 3BHE006412R0101 is an I/O card module for the acquisition and control of input and output signals in industrial automation systems. It can communicate and interact with various sensors, actuators and other external devices to achieve monitoring and control of the production line and improve production efficiency and quality. In addition, it can also be applied to power systems, building automation, traffic systems and other fields to provide high-performance, high-reliability I/O card module solutions.
Parameters and specifications:
Model: UFC762AE101 3BHE006412R0101
Voltage: AC220V/DC24V
Frequency: 50/60Hz
Power consumption: According to the search results, there are two different power consumption values: 10W and ≤ 2W, which may be based on different operating conditions or measurement methods.
Operating temperature: There are two different temperature ranges in the search results: -10℃~+55℃ and -20℃~60℃. This may be due to differences in product models or versions.
Communication interface: Supports RS485, Modbus, Profibus, etc.
Input signal: analog (0-10V, 4-20mA), digital (ON/OFF).
Output signal: analog (0-10V, 4-20mA), digital (ON/OFF), relay contact switch output (220VAC/2A or 24VDC/2A), SSR driver (12VDC/30mA), etc.
Control accuracy: ±0.1%FS (according to search results 1) or ±0.2%F.S±1 word (according to search results 3), with automatic compensation for temperature drift, time drift function.
Measurement control cycle: 0.5s.
Distribution output: DC24±1V (25mA).
Isolation voltage: input-output: 1500V, input-power supply, output-power supply: 1000V.
