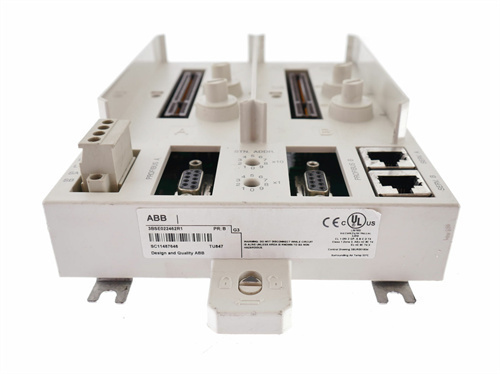

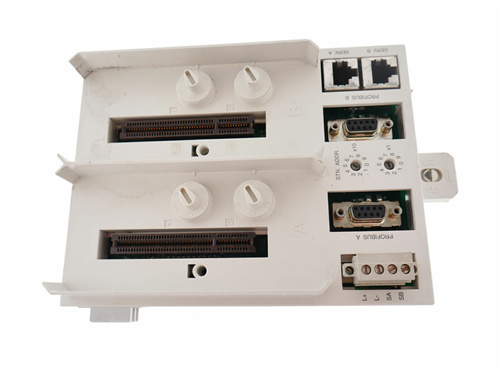

TU847 3BSE022462R1

Description

1. Parameter Specifications

• Power Supply: The TU847 3BSE022462R1 operates on a 24V DC power supply. The power consumption is relatively low, around 6 – 9W, which is energy – efficient for long – term industrial use.
• Input/Output Configuration:
  • Digital Inputs: It is equipped with 16 digital inputs. These inputs are designed to interface with various industrial sensors such as proximity sensors, limit switches, and photoelectric sensors. The input voltage range is 24V DC ±10%, a common standard in industrial applications.
  • Digital Outputs: There are 16 digital outputs. Each output can handle a maximum current of 0.5A, suitable for driving small – to medium – sized loads like relays, solenoid valves, and indicator lights.
• Communication Interface: The module supports the PROFIBUS DP communication protocol. It can communicate at a rate of up to 12 Mbps, enabling fast and reliable data transfer between the module and other devices in the industrial network, such as programmable logic controllers (PLCs).
• Electrical Isolation: It features electrical isolation between the input/output circuits and the communication interface. This isolation helps protect the module from electrical interference, short – circuits, and voltage spikes, enhancing its overall reliability.

2. Applications

• Industrial Automation: In manufacturing plants, the TU847 is used to monitor and control various industrial processes. For example, in a metal – forming plant, it can control the operation of presses, shears, and bending machines. The digital inputs can monitor the status of these machines, such as whether they are in operation or have encountered an error, and the digital outputs can send control signals to start or stop the machines.
• Robotics: In robotic applications, it can be used to interface between the robot controller and external devices. In a robotic painting system, the digital inputs can receive signals from sensors that detect the position of the workpiece and the status of the paint spray gun. The digital outputs can then control the movement of the robot arm and the operation of the spray gun.
• Material Handling: In warehouses and distribution centers, the TU847 can be integrated into material handling systems. It can control the movement of automated guided vehicles (AGVs) and the operation of conveyor belts. The digital inputs can detect the position of pallets and products, while the digital outputs can control the motors and actuators of the AGVs and conveyor belts.

3. Weight and Dimensions

• Weight: The TU847 3BSE022462R1 weighs approximately 0.8 kg. Its relatively light weight makes it easy to install and handle during the setup and maintenance processes.
• Dimensions: It has compact dimensions, typically around 150 mm in length, 100 mm in width, and 50 mm in height. These dimensions allow it to be easily installed in control cabinets or on DIN rails in industrial environments.

4. Features

• Compact Design: The small form factor of the TU847 makes it suitable for applications where space is limited. It can be easily integrated into existing control systems without taking up excessive space.
• Flexible Configuration: The module can be configured using software tools. Users can set up the input/output functions, communication parameters, and alarm thresholds according to their specific requirements. This flexibility allows for customization in different industrial applications.
• Diagnostic Functions: It is equipped with built – in diagnostic functions that can detect faults in the input/output circuits and the communication interface. The diagnostic information can be displayed on a human – machine interface (HMI) or sent to a PLC for further analysis, facilitating quick troubleshooting.

5. Stability and Reliability

• Robust Construction: The TU847 is built with a durable housing that can withstand harsh industrial environments, including dust, moisture, and mechanical vibrations.
• Quality Components: It uses high – quality electronic components that are selected for their reliability and long – term performance. This helps to ensure stable operation over an extended period.
• Redundancy Support: Although not always standard, in some critical applications, redundancy options can be implemented. For example, redundant communication paths can be set up to ensure continuous data transfer in case of a communication failure.

6. Real – World Examples

• Automotive Assembly Plant: In an automotive assembly plant, the TU847 is used to control the operation of a robotic arm that installs car seats. The digital inputs receive signals from sensors that detect the position and alignment of the seats and the vehicle chassis. Based on these signals, the digital outputs control the movement and force of the robotic arm to ensure proper installation. The diagnostic functions of the TU847 help to quickly identify and resolve any issues that may arise during the assembly process, minimizing downtime and ensuring high – quality production.
• Pharmaceutical Packaging Line: In a pharmaceutical packaging line, the TU847 is used to control the operation of a blister – packaging machine. The digital inputs monitor the level of the tablets in the hopper and the position of the blister packs. The digital outputs control the filling of the tablets into the blister packs and the sealing of the packs. The stable performance of the TU847 ensures accurate and efficient packaging, reducing product waste and maintaining high – quality standards.
