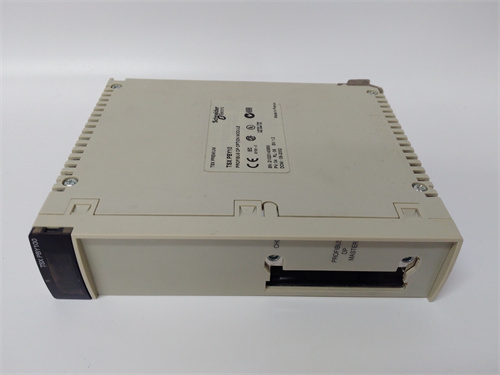

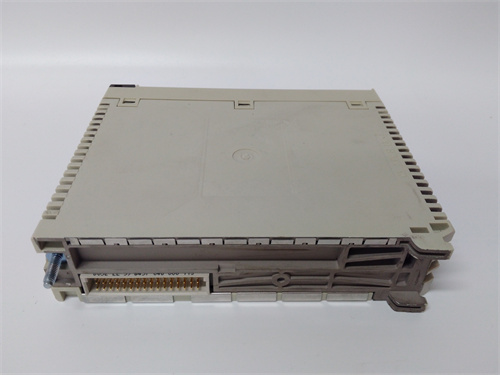

TSXPBY100

Description

1.‌Parameters and Specifications‌:
–‌Brand‌: Schneider Electric
–‌Model‌: TSXPBY100
–‌Bus Type‌: Profibus DP
–‌Transmission Rate‌: Up to 12 Mbit/s1
–‌Transmission Distance‌:
– Up to 100 meters without repeaters
– Up to 400 meters with 3 repeaters at 12 Mbit/s
– Greater distances at lower transmission rates1

2.‌Dimensions and Weight‌:
–‌Dimensions‌:
– Length: 10.83 inches (27.5 cm)
– Width: 9.65 inches (24.5 cm)
– Height: 9.65 inches (24.5 cm)

–‌Weight‌:
– 1.92 pounds (0.87 kg) (module net weight)1
– 2.89 pounds (1.309 kg) for one packaging unit1

3.‌Series‌:

• TSXPBY100 belongs to Schneider Electric’s Premium PLC communication modules series, designed for use with Profibus DP bus systems2.

4.‌Features‌:
–‌Profibus DP Compatibility‌: Enables communication between Premium PLCs (such as TSX/PCI 57) and Profibus DP bus2.
–‌High Transmission Rates‌: Supports high data transmission rates for efficient communication1.
–‌Expandable‌: Can be extended using repeaters to cover longer distances1.
–‌Easy Integration‌: Installs in any expansion slot of the Premium PLC rack, including PCMCIA card slots12.

5.‌Functions‌:
–‌Communication‌: Facilitates data exchange between PLCs, sensors, actuators, and other automation devices connected to the Profibus DP bus2.
–‌Control‌: Enables remote control and monitoring of connected devices, improving system efficiency and reliability3.
–‌Data Acquisition and Monitoring‌: Supports data acquisition systems, allowing real-time monitoring of sensor and instrument data3.
–‌Industrial Networking‌: Enables the establishment of industrial networks, connecting multiple devices and controllers for data sharing and collaboration
