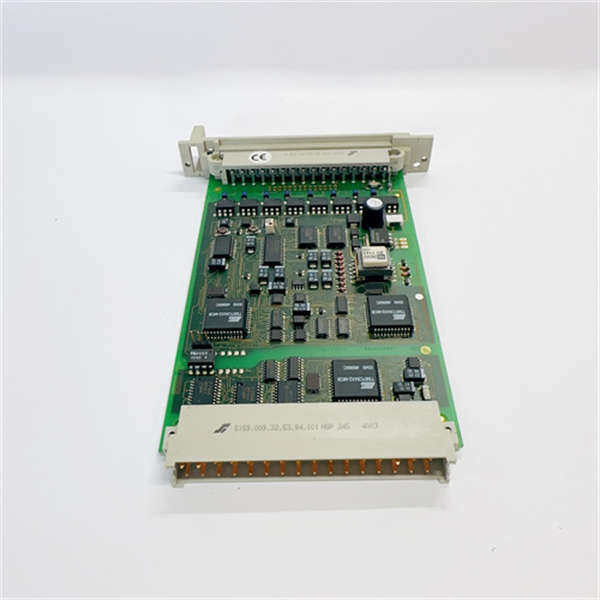

TRICONEX F6217

Description

1. Product Description

2. Product Parameters

• Product Type: 8-channel analog input module
• Input Voltage Range: 0…5.5 V
• Input Current Range: 0…22 mA
• Resolution: 12 bit
• Weight: 0.14 kg
• Communication Protocol: Compatible with Modbus RTU

3. Advantages and Features

• High Precision: The 12-bit resolution enables exceptional accuracy, allowing for precise measurement and control, which is crucial for applications that require high precision, such as in the manufacturing of precision parts2.
• Wide Input Range: The wide input voltage and current ranges (0…5.5 V and 0…22 mA respectively) make it capable of handling a variety of sensor signals, increasing its versatility in different industrial scenarios2.
• Reliable Performance: Crafted from high-quality materials, it can withstand harsh industrial conditions, including varying temperatures and humidity. It ensures stable operation even in the most demanding environments.
• Easy Integration: Its compact size and lightweight design (only 0.14 kg) minimize installation space and facilitate quick integration into existing systems. It is also compatible with Modbus RTU protocol, enabling seamless integration with other devices and systems.
• User-friendly: The module features an intuitive interface and comes with comprehensive documentation. Integrated diagnostic tools make it easy for users to configure settings and troubleshoot issues, reducing downtime and enhancing operational efficiency.

4. Application Areas and Cases

• Application Areas: The HIMA F6217 is suitable for a wide range of industries, including manufacturing, petrochemicals, power generation, and water treatment. In manufacturing, it can be used for precise control of production processes, such as in the automotive industry for controlling the assembly line speed and robotic operations. In the petrochemical industry, it can monitor and control parameters such as temperature, pressure, and flow rate in oil refineries and chemical plants.
• Application Case: In a large petrochemical plant, the HIMA F6217 is used to monitor the temperature and pressure of various reaction tanks. The 8-channel design allows it to connect to multiple sensors simultaneously, providing real-time data on the process parameters. With its high precision and reliable performance, it ensures that the reaction conditions are maintained within the safe and optimal range, preventing potential accidents and improving production efficiency.

5. Comparison with Competitors

• Higher Precision: Compared to some similar products in the market, the HIMA F6217 offers a 12-bit resolution, which provides more accurate measurement and control, enabling more precise process adjustments and reducing errors.
• Wider Compatibility: Its compatibility with Modbus RTU protocol allows for easier integration with a broader range of existing control systems, giving users more flexibility in system design and expansion, while some competitors may have more limited compatibility.
• Stronger Reliability: Built with high-quality materials and advanced manufacturing processes, the F6217 can better withstand harsh industrial environments, ensuring stable and continuous operation, outperforming some competitors in terms of reliability and durability.

6. Selection Suggestions

• Compatibility: Ensure that the F6217 is compatible with your existing control system and other devices. Check if the communication protocol, input/output requirements, and electrical parameters match your system’s needs.
• Installation Space: Consider the installation space available in your control cabinet or equipment. The compact size of the F6217 is an advantage in tight spaces, but make sure it can be properly installed and connected without causing any interference.
• Function Requirements: Based on your specific application, evaluate whether the 8-channel design, input range, and resolution of the F6217 meet your measurement and control requirements. If you need to monitor and control a large number of analog signals with high precision, the F6217 is a good choice.
• Budget: While considering the performance and features, also take into account your budget. The HIMA F6217 offers high performance and reliability at a reasonable price, but make sure it fits within your financial plan.

7. Precautions

• Installation: Follow the installation instructions provided in the documentation carefully. Ensure proper grounding to prevent electrical interference and ensure the safety of the system. When connecting the module to sensors and other devices, make sure the connections are secure and the wiring is correct to avoid signal errors.
• Power Supply: Use a stable power supply within the specified voltage range to avoid damage to the module or incorrect operation. It is recommended to use a power supply with filtering and protection functions to prevent voltage spikes and fluctuations.
• Maintenance: Regularly check the module’s operation status and clean the surface to remove dust and dirt. Check for any loose connections or signs of damage. If any problems are found, refer to the troubleshooting guide in the documentation or contact HIMA’s technical support for assistance.
