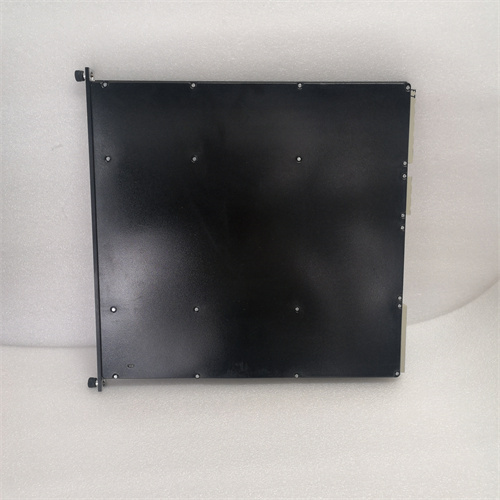

TRICONEX 3806E

Description

trait
Safety functions: Use the functions of the safety controller to implement safety concepts in accordance with IEC 62443 standards
HART Filter: Integrated HART filter with SIL 3 quality for added system safety
Industrial grade design: ADAPTS to a wide range of field environments to ensure stable operation in all conditions
Multiple functions: With analog input function, you can receive and process analog input signals
Easy integration: Standard design and interface for easy integration into existing industrial automation systems
High accuracy and resolution: Ensure accurate measurement and reporting of process variables
Communication capability: The ability to communicate with other components within the Triconex system, enabling overall system integration and collaboration
High reliability and safety: Designed for high reliability and safety, it is often used to control safety-critical processes
Triple fault tolerance: Follow the principle of triple module fault tolerance (TMR) to ensure continuous and stable operation in case of failure
Programmability: Support programmability, the user can programmatically configure the behavior of the module
Real-time: It has real-time performance and can respond to input signals at a very fast speed

argument
Output current range: 4-20 mA output (+ 6% overrange)
Output accuracy: %3C0.25% (in the range of 4-20 mA) FSR (0-21.2 mA), from 32 to 140 degrees Fahrenheit (0 to 60 degrees Celsius)
Resolution: 12 bits
Out of range protection: + 42.5VDC, continuous
Switch time for branch failure: %3C 10 ms, typical value
specification
Product type: Analog output module
Type: TMR (Triple Module Fault Tolerance)
Output points: 8
Support system: PLC/DCS system
Function: For access to HART (Highway Addressable Remote Transducer) equipment, with the function of a safety controller, to achieve the safety concept according to IEC 62443 standards
dimension
Dimensions (H x W x D) : approximately 4.4 cm x 16.9 cm x 22 cm
Net depth/length: 135 mm
weight
Weight: 4 kg
