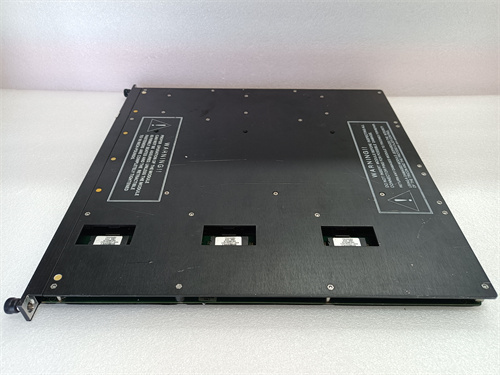

TRICONEX 3805H

Description

Parameters and Specifications:

• Brand: TRICONEX
• Model: 3805H
• Type: Analog Output Module
• Output Current Range: 4-20 mA (with +6% overrange)
• Number of Outputs: 8
• Current Loop Type: DC Coupled
• Type Classification: TMR, AO
• Resolution: 12 bits
• Output Accuracy: <0.25% of FSR (0-21.2 mA) within 4-20 mA range, from 32° to 140° F (0° to 60° C)

Dimensions and Weight:

• Size: Not specified in detail
• Weight: 2.6 kg or 3 kg depending on sources¹²³

Series:

• TRICONEX modular redundancy system¹

Features:

• High Reliability: Designed for high availability, maintainability, and safety¹
• Modular Design: Allows flexible configuration based on actual needs¹
• Signal Conversion: Converts digital signals to analog signals to drive actuators or other devices requiring analog input²
• Self-Diagnostics and Fault Tolerance: Quick fault localization and resolution, improving system stability and reliability¹

Application/Role:

• Nuclear Power Safety System: TRICONEX 3805H is a part of the TRICONEX nuclear power safety system, specifically designed for nuclear power plants and compliant with IEEE and IAEA standards²
• Industrial Control: Used in industries such as petroleum, chemicals, power, and steel for data communication and control purposes¹
