Description
Parameters and Specifications:
Power Supply: 100-240 VAC, 50/60 Hz
Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5% to 95% (non-condensing)
Input Voltage & Output Voltage: 24 VDC
Memory: 64 MB
Output Current Range: 4-20 mA (+6% overrange)
Resolution: 12 bits
Output Accuracy: <0.25% of FSR (0-21.2 mA), from 32° to 140° F (0° to 60°C)
Output Points: Up to 480 digital/analog I/O
Support for Maximum Control Panels: 2
Dimensions and Weight:
Dimensions: 483 x 133 x 406 mm or 49×45.3×6.8cm (dimensions may vary depending on source)
Weight: 2.3 kg, 2.75 kg, or 4 kg (weight may vary depending on source)
Series:

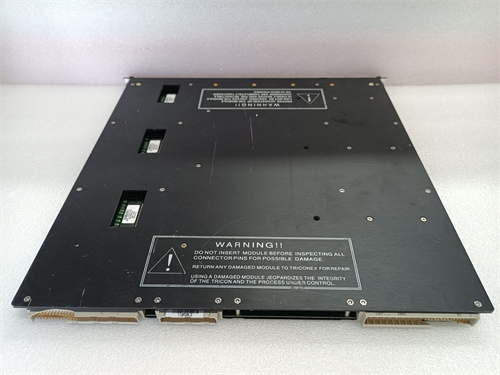

Belongs to the TRICONEX series of products
Features:
High Reliability: Designed for stable operation in harsh industrial environments
Multi-channel Input: Supports multiple input channels for connecting digital switches or sensors
High-speed Sampling Rate: Monitors and records changes in switch status in real-time
Wide Voltage Input Range: Accommodates different voltage levels for digital signal input
Flexible Configuration and Programming: Customizable for specific application needs
High Precision and Stability: Accurate detection of switch status with stable signal output
Monitoring and Diagnostic Functionality: Provides real-time module status, fault diagnosis, and alarms
Advanced ARM Processor and FPGA Technology: Ensures high-speed data acquisition and precise control
Applications and Role:
Automation and Control Systems: TRICONEX 3805E plays a crucial role in various automation and control systems, enabling precise monitoring and control of industrial processes
Industry Applications: Widely used in industries such as petroleum, natural gas, chemicals, power generation, pharmaceuticals, and food processing
