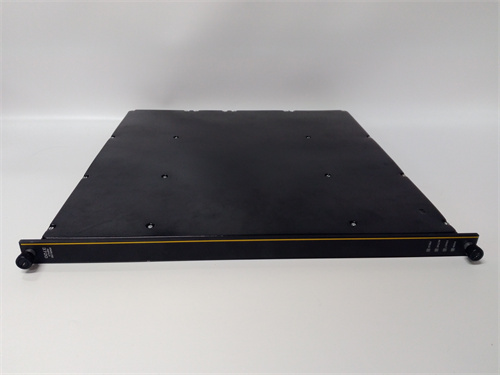

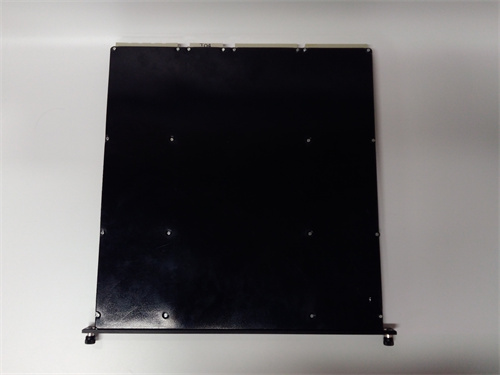

Description
argument
Voltage: Support 0-5VDC, +6% or 0 to 5VDC or -5 to +5 VDC.
Input points: 64 single-ended.
Input update rate: 10ms.
Resolution: 12 – or 14-bit programmable.
Accuracy: From 0°C to 60°C, less than 0.15% of FSR.
Power off resistance: 140 kΩ (DC), typical value.
Isolation between branches: 420 kΩ, typical value.
Input out-of-range protection: 150 VDC/115 VAC continuous.
specification
General specification: TMR (three-mode redundancy).
Isolation point: Yes.
Diagnostic indicators: PASS, FAULT, ACTIVE, FIELD (for models 3720 and 3721).
Color code: Yellow (for 3720 and 3721).
Size and weight
Physical size: 100mm X 160mm (board form).
Board weight: 0.8Kg. Note, however, that it is also said to weigh 1.24kg
trait
Multi-function integration: The TRICONEX 3720 is a small, all-in-one machine controller that supports motion functions (such as positioning, speed control, torque control, etc.).
Modular design: With standard MECHATROLINK and Ethernet (100Base-TX) ports and an optional slot, users can add or replace corresponding modules as required.
High reliability and safety: Particularly suitable for environments that require strict compliance with safety standards, such as petrochemicals, energy management, etc.
Efficient communication: Supports a variety of communication protocols to ensure the effective transfer of information between various components.
Strong scalability: it can connect and communicate with different devices and network interfaces.
