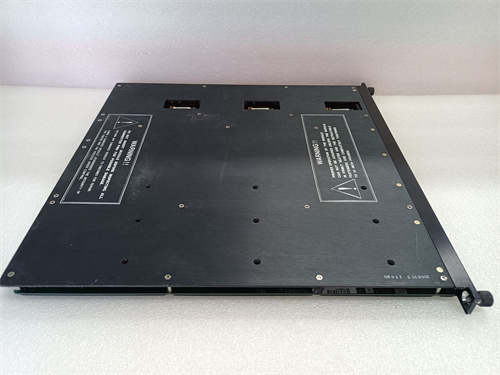

TRICONEX 3704E Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions in English
Parameters and Specifications:
Type: TMR (Triple Modular Redundancy).
Voltage Range: 0-5V or 0-10V (selectable through TriStation software).
Input Points: 64 individual inputs (common specification).
Input Update Rate: 75 milliseconds.
Resolution: 12 bits.
Accuracy: FSR (Full Scale Range) less than 0.25% from 0°C to 60°C.
Diagnostic Indicators: PASS, FAULT, ACTIVE (with additional FIELD indicator on 3720 and 3721 models).
Dimensions and Weight:
Dimensions: Not specifically mentioned in the provided search results, but typical modules of this type are rack-mounted with standard dimensions.
Weight: Approximately 200g for the housing (not including the entire module assembly).
Series:
TRICONEX 3704E belongs to the TRICONEX series of TMR (Triple Modular Redundancy) modules.
Features:
Triple Modular Redundancy (TMR): Ensures high availability and fault tolerance by having three parallel channels.
Isolation: Available on 3720 and 3721 models.
Extensive Diagnostics: Supports various diagnostic indicators for easy troubleshooting.
Modbus, Ethernet/IP, DeviceNet, ControlNet Communication: Supports multiple communication protocols for integration with other systems.
Functions/Role:
Signal Acquisition: Acquires analog input signals from sensors and transmitters.
Signal Processing: Converts analog signals to digital data for processing by the PLC or control system.
Control System Integration: Integrates with PLCs and other automation components to form a complete control system.
Enhanced Safety and Reliability: TMR design ensures fault tolerance and high availability, crucial in safety-critical applications.
