Description

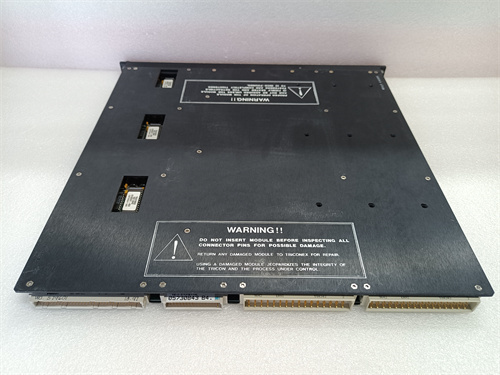

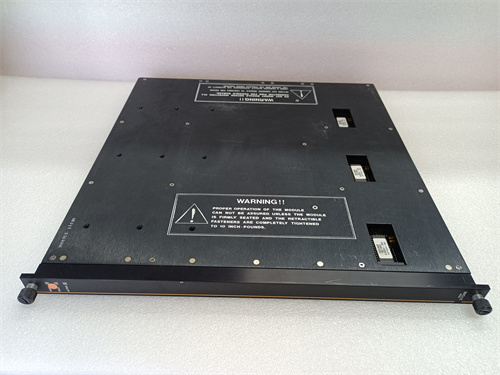

TRICONEX 3704E, produced by Invensys (now part of Schneider Electric), is a highly reliable controller card widely used in industrial automation systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Model: TRICONEX 3704E
Brand: Invensys (Now Schneider Electric)
Communication Protocols: Supports Modbus, Ethernet/IP, DeviceNet, and ControlNet
Baud Rate: 9600 bps to 115200 bps
Connection Types: RS-232, RS-422, RS-485, and RJ-45
Operating Temperature Range: -40°C to 70°C
Dimensions: 3U high x 2HP wide (or 170mm x 105mm x 32mm)
Weight: 2.0 kg
Voltage: 24V
Current: 100-400A
Series:
TRICONEX is a brand within Schneider Electric’s safety, critical control, and turbo machinery applications portfolio. The 3704E is part of the TRICONEX family of controllers, specifically designed for industrial safety and reliability.
Features:
Modular Design: Offers flexibility and scalability for different industrial applications.
Redundancy: Supports triple modular redundancy (TMR) for enhanced safety and reliability.
Communication Capability: Supports multiple communication protocols, allowing easy integration with various devices and systems.
Diagnostic Capabilities: Built-in fault diagnosis and self-testing features for enhanced maintenance and troubleshooting.
Programmable Logic: Supports programmable work modes and logic, allowing for customized control strategies.
Input/Output Capability: Supports 16 digital inputs and 16 digital outputs.
Functions:
Monitoring and Control: The TRICONEX 3704E is primarily used to monitor and control digital signal inputs from factory equipment, production lines, sensors, and actuators in industrial automation systems.
Safety and Reliability: Ensures the safety and reliability of industrial processes by monitoring critical systems and equipment.
Process Automation: Supports the automation of various industrial processes, including those in the oil and gas, chemical, power, and nuclear industries.
Applications:
The TRICONEX 3704E is widely used in various industrial sectors, including oil and gas, chemicals, power generation, nuclear plants, manufacturing, and transportation. It plays a crucial role in ensuring the safety, efficiency, and reliability of critical industrial processes.
Note: The specifications, features, and applications mentioned above are general descriptions. It is always recommended to refer to the manufacturer’s official documentation for detailed and accurate information.
