Description
Parameters and Specifications:
Voltage: 0-5V, + 6% (only 3700A)
Type: TMR (Triple Modular Redundancy)
AI No. of Input Points: 32
Input Resistance (load): 30 MΩ (DC), min.
Power-Off Resistance: 30 KΩ (DC), typical
Common Mode Rejection: -80 dB (DC-100Hz), typical
Common Mode Range: -12V to +12V peak
Resolution: 12 bits
Accuracy: < .15% of FSR, from 0° to 60°C
Input Update Rate: 55 ms
Dimensions and Weight:
Dimensions (may vary by supplier or model): Approximately 120mm x 60mm x 80mm (from a similar model)
Weight: Not specified
Series:

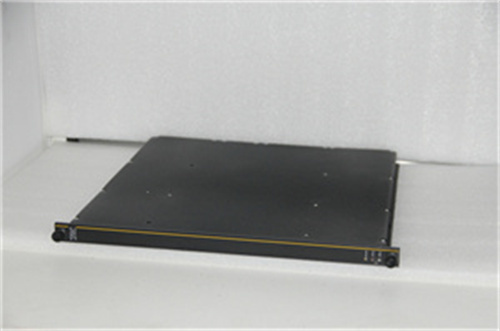

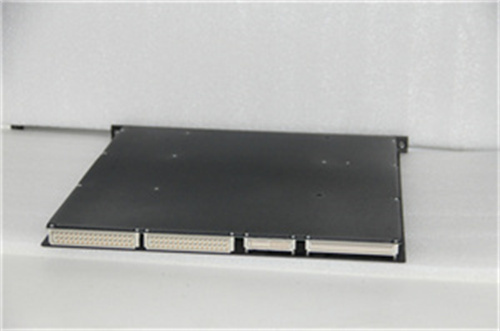

TRICONEX 3700A Series
Features:
Triple Modular Redundancy (TMR): Ensures high availability and fault tolerance
No Single Point of Failure: Any single component failure does not affect the overall operation of the Tricon system
Complete Diagnostics: Provides online diagnostics without additional hardware or special application programming
Hot Swappable: Modules can be replaced online without interrupting the system or process
Easy Programming: Supports IEC 1131-3 compliant programming software for quick configuration and program simulation
Functions and Applications:
TRICONEX 3700A is a module designed for use in Triconex systems, which are often found in critical applications requiring high availability and reliability, such as emergency shutdown or applications that need to meet IEC 61508 integrity levels 1, 2, or 3.
It can be used in various industries and applications, including power generation, oil and gas, chemical processing, and other industrial automation systems.
