Description

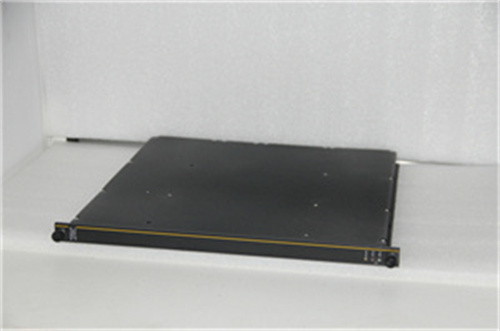

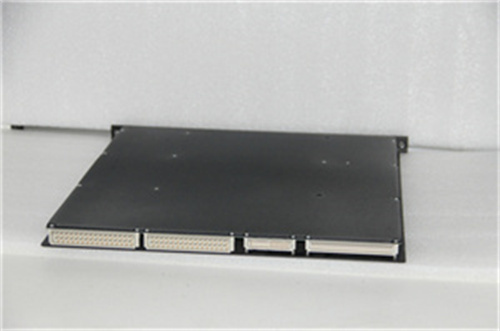

TRICONEX 3700A Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions in English
Parameters and Specifications:
Number of Input Channels: 32.
Input Voltage Range: 0-5V (+6% for 3700A only).
Input Update Rate: 55 ms.
Resolution: 12 bits.
Accuracy: Less than 0.15% of FSR from 0° to 60°C.
TMR Mode: Utilizes middle value selection algorithm for data integrity.
Common Mode Rejection: -80 dB (DC-100Hz).
Common Mode Range: -12V to +12V peak.
Dimensions and Weight:
Dimensions: While specific dimensions are not mentioned, it is typical for such modules to be rack-mounted with standard dimensions for easy integration.
Weight: Approximately 3 kilograms.
Series:
TRICONEX 3700A belongs to the 3700 series of industrial automation and control modules.
Features:
Triple Modular Redundancy (TMR): Ensures high availability and fault tolerance by using three parallel processing channels.
Diagnostic Capabilities: Provides extensive embedded diagnostics for quick identification of faulty modules.
Online Replacement: Modules can be replaced online without interrupting the system or process.
Programmable: Can be programmed and configured to meet specific application requirements.
Integrated Safety: Designed to meet high safety standards, often used in critical applications.
Functions/Role:
Signal Acquisition and Processing: Acquires analog input signals from sensors and converts them into digital values for processing and control.
Control Logic Execution: Executes control logic based on the acquired input signals to generate appropriate outputs.
System Integration: Integrates with other PLCs, sensors, actuators, and other automation components to form a complete control system.
Fault Detection and Protection: Detects faults and malfunctions, triggering alarms or protective actions to maintain system safety and reliability.
