Description
Parameters and Specifications:
Communication Speed: 2 megabits per second (Mbps) between main processor and communication modules.
Power Supply: Distributed on two independent power rails in the backplane. Each module in the chassis draws power from both power rails through dual power regulators.
Input/Output Configuration: Each I/O module contains four sets of power regulators: one for channels A, B, and C, and one for status indication LEDs.
Operating System: Simple.
System Capabilities: Strong.
System Functions: Powerful.
Dimensions and Weight:
Size: 121212 cm.
Series:

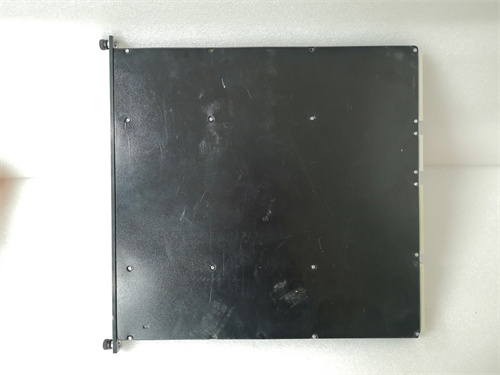

TRICONEX 3625A Series.
Features:
Communication Module: Interfaces between the programmable logic controller (PLC) and industrial equipment or processes.
Redundancy: Supports active and hot standby I/O modules, both receiving the same information from field terminal wiring.
Digital Input Modules: Supports two basic types: TMR and single. Each module contains three identical channels (A, B, and C).
Temperature Compensation: Thermocouple input modules perform linearization, cold junction compensation, and temperature conversion.
Flexibility: Programmable to support various thermocouple types.
Functions and Applications:
Industrial Process Control: Used in systems such as oil and gas, chemicals, and power generation for monitoring and controlling various process parameters and equipment states.
Safety Systems: Plays a critical role in monitoring and controlling critical equipment and processes to ensure personnel and equipment safety.
Power Systems: Provides control and protection functions for electrical equipment such as generators, transformers, and switchgear.
Process Safety Management: Monitors and controls key process parameters, detecting abnormalities and taking appropriate measures to prevent accidents.
Pressure Vessel and Pipeline Control: Monitors and controls pressure, temperature, and flow parameters in pressure vessel and pipeline systems.
