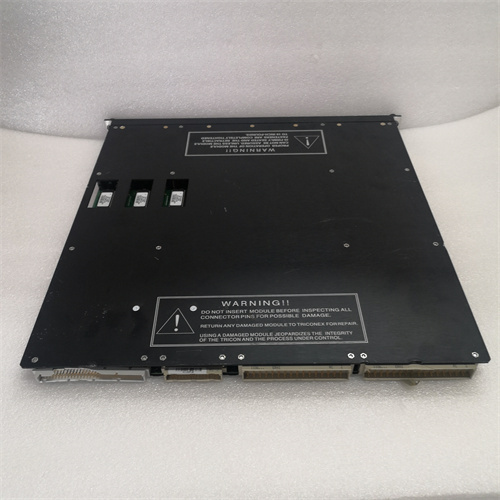

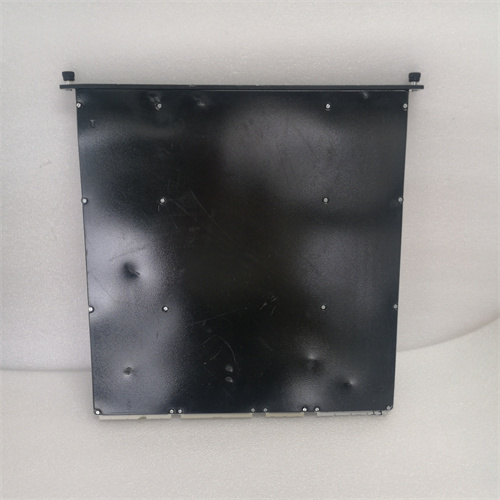

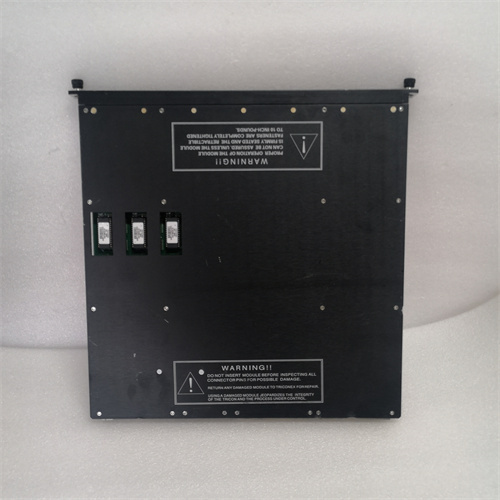

TRICONEX 3503E

Product Description

Product Parameters

• Input Type: Analog (voltage, current, temperature)
• Number of Channels: 16 channels
• Input Range:
  • Voltage: 0-10 VDC, ±10 VDC, etc.
  • Current: 4-20 mA, 0-20 mA
  • Temperature: Depends on the sensor type
• Accuracy: Typically ±0.1% of full scale
• Resolution: 16 bits
• Update Rate: Fast update rate for real-time monitoring
• Power Supply: 24 VDC
• Compatibility: Compatible with TRICONEX safety systems
• Operating Temperature: -40°C to +70°C
• Communication Interface: Communicates with the TRICONEX system’s backplane

Advantages and Characteristics

• High Reliability: The TRICONEX 3503E is designed with a triple modular redundancy (TMR) architecture, which provides enhanced reliability. In case of a single component failure, the other two redundant components can continue to operate, ensuring that the system remains functional. For example, in a chemical plant where safety is of utmost importance, the TRICONEX 3503E has been used to monitor critical process parameters. Even when one of the channels experienced a minor fault, the redundant architecture ensured that the overall system continued to operate without any interruption, preventing potential safety hazards.
• High Precision: With a 16-bit resolution and an accuracy of typically ±0.1% of full scale, the TRICONEX 3503E can provide highly accurate measurements. This is crucial in applications where precise control and monitoring are required, such as in pharmaceutical manufacturing, where even small variations in process parameters can affect the quality of the final product.
• Easy Integration: It is designed to integrate seamlessly with the TRICONEX safety system. The module can be easily installed in the system’s backplane, and its communication interface allows for quick and efficient data transfer to the control system. This reduces the complexity of system integration and minimizes the potential for errors during installation.

Application Areas and Application Cases

• Application Areas: The TRICONEX 3503E is widely used in industries such as oil and gas, chemical, power generation, and pharmaceutical manufacturing. It is suitable for applications where safety and reliability are critical, such as process control, safety interlock systems, and environmental monitoring.
• Application Case: In an oil refinery, the TRICONEX 3503E was used to monitor the temperature, pressure, and flow rate of various process streams. The accurate and reliable data provided by the module allowed the control system to make real-time adjustments to the refinery’s operations, ensuring optimal performance and safety. By using the TRICONEX 3503E, the refinery was able to reduce the number of unplanned shutdowns by 30%, resulting in significant cost savings and increased productivity.

Comparison with Similar Products

Selection Suggestions

• Compatibility: Ensure that the TRICONEX 3503E is compatible with your existing TRICONEX safety system. Check the system’s specifications and requirements to make sure that the module can be integrated without any issues.
• Installation Environment: Consider the operating temperature and other environmental conditions of the installation location. The TRICONEX 3503E is designed to operate in a wide temperature range, but extreme conditions may require additional protection or cooling measures.
• Budget: While the TRICONEX 3503E offers high performance and reliability, it is important to consider your budget. Compare the cost of the module with its features and benefits to ensure that it provides good value for money.

Precautions

• Safety Specifications: When installing and using the TRICONEX 3503E, follow all relevant safety regulations and guidelines. Make sure that the module is properly grounded to prevent electrical hazards.
• Maintenance Recommendations: Regularly check the module for any signs of damage or malfunction. Clean the module periodically to remove dust and debris that may affect its performance. Keep an eye on the diagnostic indicators to detect any potential issues early and take appropriate action.
