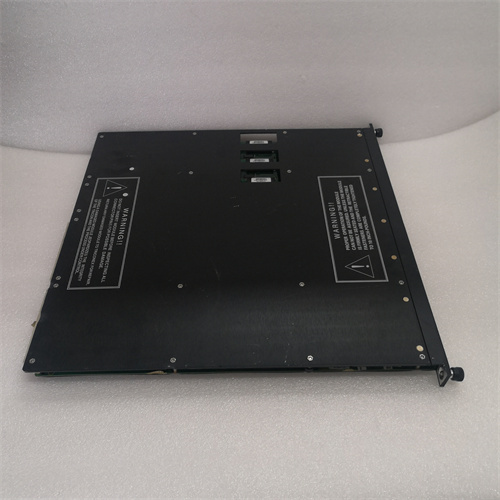

TRICONEX 3503E

Description

1. Parameter Specifications

• Power Supply: The TRICONEX 3503E operates on a dual – redundant 24V DC power supply. This design ensures high reliability as the system can continue functioning if one power source fails. The power consumption is around 30 – 35W under normal operating conditions.
• Processor and Memory:
  • It is equipped with a high – performance triple – modular redundant (TMR) processor architecture. This means there are three independent processors that execute the same control logic simultaneously and compare results. If one processor fails, the system can continue operating without interruption.
  • The module has a significant amount of memory. The program memory can store large – scale control programs, and the data memory can hold real – time process variables, historical data, and configuration parameters.
• Input/Output Configuration:
  • Digital Inputs: There are 64 digital inputs. These can accept signals from a wide range of digital sensors, including proximity sensors, limit switches, and encoder signals. The input voltage range is 5 – 24V DC.
  • Digital Outputs: It features 32 digital outputs. Each output can drive a load with a maximum current of 2A, suitable for controlling high – power relays, contactors, and solenoids.
  • Analog Inputs: There are 16 analog inputs. They can receive signals in the ranges of 0 – 10V or 4 – 20mA, with a 16 – bit resolution for highly accurate measurement of physical quantities like temperature, pressure, and flow.
  • Analog Outputs: 8 analog outputs are available, capable of outputting signals in the same ranges as the analog inputs for precise control of analog – based actuators.
• Communication Interfaces:
  • It supports Ethernet communication with TCP/IP protocol for high – speed data transfer and integration into industrial networks. It also has multiple RS – 485 serial ports with Modbus RTU support for local communication with other devices.

2. Applications

• Safety – Critical Industrial Processes: In industries such as oil and gas, chemical, and nuclear power, the 3503E is used for safety – critical control applications. It can monitor and control processes to prevent dangerous situations, such as over – pressure, over – temperature, and leakage.
• Large – Scale Industrial Automation: In large manufacturing plants, it can control and monitor complex production lines. It manages the operation of multiple machines, coordinates material flow, and ensures product quality across the entire production process.
• Power Generation and Distribution: In power plants and substations, it can monitor electrical parameters and control the operation of circuit breakers, transformers, and other power – distribution equipment.

3. Weight and Dimensions

• Weight: The module weighs approximately 4 kg, which is relatively heavy due to its large – scale functionality and robust construction.
• Dimensions: The overall dimensions are: length – 280mm, width – 220mm, height – 120mm. Its size is designed to fit into standard industrial control cabinets.

4. Features

• Triple – Modular Redundancy (TMR): The TMR architecture provides high – integrity control and fault – tolerance. In case of a single – point fault in one module, the system can continue to operate normally.
• High – Precision Measurement and Control: The 16 – bit resolution of analog inputs and accurate analog outputs enable extremely precise measurement and control of process variables, which is essential for applications requiring high accuracy.
• Flexible Communication: The support for Ethernet and multiple RS – 485 serial ports allows for easy integration with a wide range of devices and systems, facilitating data sharing and remote monitoring.

5. Stability and Reliability

• Robust Construction: The module is housed in a sturdy metal enclosure that provides protection against dust, moisture, and mechanical vibrations. This ensures stable operation in harsh industrial environments.
• Fault – Tolerant Design: With features like dual – redundant power supply and TMR, the 3503E can tolerate faults without significant impact on system performance.
• Quality Assurance: Through strict quality control during manufacturing and the use of high – quality components, it offers long – term reliable operation.

6. Real – world Examples

• Large – scale Oil Refinery: In a large – scale oil refinery, the 3503E controls the entire distillation process. It monitors temperature, pressure, and flow rate at multiple points in the refinery. In case of any abnormal conditions, it can quickly adjust the operation of valves, pumps, and other equipment to ensure safe and efficient production.
• Nuclear Power Plant Reactor Control: In a nuclear power plant, it is used for reactor control. It continuously monitors critical parameters such as neutron flux, coolant temperature, and pressure. Based on the data, it controls the operation of control rods and cooling systems to maintain the safe and stable operation of the reactor.
