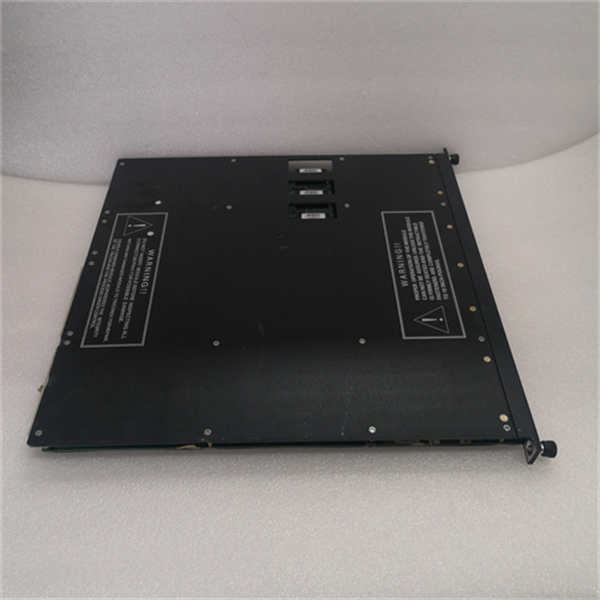

TRICONEX 3503E

Description

‌Parameters & Specifications‌:

–‌Input Channels‌: Provides 32 digital input channels for receiving signals from switches, sensors, and other devices1.
–‌Power Supply‌: Operates on 24 VDC, with a power consumption of less than 5W1.
–‌Environmental Conditions‌: Suitable for operation in temperatures ranging from -40°C to +70°C, with a relative humidity of 5% to 95% (non-condensing)1.
‌Dimensions & Weight‌:

–‌Dimensions‌: Reported dimensions vary, with some sources indicating 224mm x 168mm x 64mm1, while others suggest a more compact size of 132mm x 105mm x 52mm2. This may depend on the specific model or revision.
–‌Weight‌: Approximately 2.3KG, as indicated in one source1, though exact weight may vary.

‌Series‌:

• TRICONEX 3503E belongs to the Triconex Trident series of industrial safety control systems1.
  ‌Features‌:

–‌High Reliability‌: Incorporates a triple modular redundant (TMR) design to ensure high reliability and availability13.
–‌Multiple Input Types‌: Supports a wide range of input types, including signals from switches, sensors, and relays1.
–‌Anti-Noise Capability‌: Designed to resist noise interference, ensuring accurate signal transmission1.
–‌Easy Configuration & Maintenance‌: Offers user-friendly configuration and maintenance interfaces1.
‌Functions & Applications‌:

–‌Signal Reception‌: Acts as an interface between sensors, switches, and the Triconex Trident safety system, receiving and processing input signals1.
–‌Safety Control‌: Integral to industrial safety control systems, helping to prevent accidents and ensure safe operations in hazardous environments1.
–‌Wide Application Range‌: Commonly used in industries such as oil and gas, chemical, and power generation, where high reliability and safety are critical
