Description
Parameters and specifications:
Input voltage:

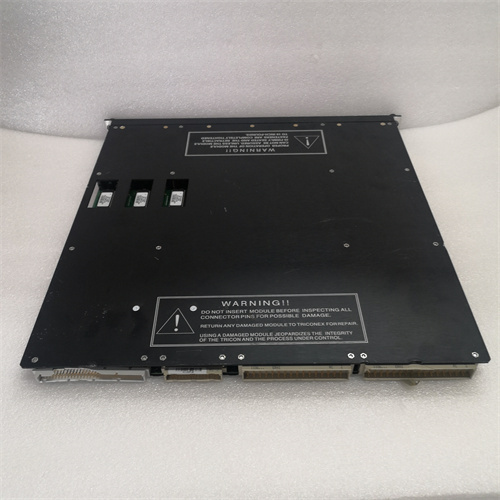

The TRICONEX 3503E power module input voltage is 24VDC.
The TRICONEX 3503E digital control module has an input voltage of 100-240VAC.
Input current:
The input current of the power module is 1.5A.
The output current of the digital control module is 20A.
Output voltage/current:
The output voltage and current of the PSU are 24VDC and 2A respectively.
Frequency:
Input frequency range DC or 47.63 Hz.
The power supply frequency is 50/60Hz.
Recommended input range: 20-42.5 volts DC.
Maximum voltage: 42.5 volts AC/DC.
Color code: Dark red.
Operating temperature range:
The power module ranges from -40 ° C to 70 ° C.
The digital control module ranges from -40℃ to 85℃.
Size and weight:
Power module dimensions: 120mm x 80mm x 35mm.
Digital control module dimensions: 300mm x 200mm x 100mm.
Weight: The weight of the power module is 4 kg, but the specific weight of the digital control module is not mentioned.
Series:
The TRICONEX 3503E is a product in the TRICONEX family for industrial automation and process control.
Features:
Multi-channel input: Provides 32 digital input channels to meet the monitoring needs of multiple devices or sensors.
High durability and anti-interference: suitable for critical applications in industrial automation control systems.
Redundant design: Includes dual processors and dual power inputs to improve system reliability and availability.
Fast response: With fast response time and high-speed data processing capability.
Multiple input/output interfaces: Support a variety of communication protocols and interface standards, such as analog input/output, digital input/output, Ethernet communication, etc.
Programmability: Various control logic and functions are implemented through programming and configuration.
Functions:
The TRICONEX 3503E digital input module has a wide range of applications in industrial automation and process control, mainly used to receive and process digital signals from external switches and sensors, providing strong support for reliable operation and efficient control of the system.
