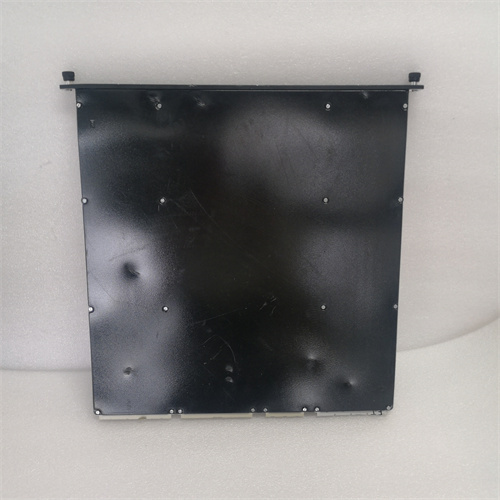

Triconex 3503E

Description

Parameters and Specifications

• Input Voltage: 24 VDC
• Input Current: 1.5A
• Output Voltage: 24 VDC
• Output Current: 2A
• Power Consumption: < 5W
• Operating Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration: 0.5 g RMS (20 Hz to 2,000 Hz)
• Shock: 5 g (half-sine wave, duration 11 ms)¹

Dimensions and Weight

• Dimensions: 224 mm x 168 mm x 64 mm¹
• Weight: 2.3 kg¹

Series

• Triconex Trident Series (Manufactured by Honeywell)¹

Features

• High Reliability: Triple modular redundant (TMR) design²
• 32 Digital Input Channels: Supports multiple input types, including switches, sensors, and relays¹³
• Noise Resistance: Anti-noise design¹
• Easy Configuration and Maintenance: Programmable and configurable¹³
• Redundant Design: Dual processors and dual power inputs for system-level redundancy and fault tolerance³
• Quick Response: Fast response time and high-speed data processing capabilities³
• Multiple I/O Interfaces: Supports analog I/O, digital I/O, Ethernet communication, and other communication protocols³

Applications

• Industrial Automation and Process Control: Used in oil and gas industry, chemical industry, power industry, and other industrial applications¹³
• Provides reliable signal acquisition and processing, improves system efficiency, and reduces costs¹

Role

• A high-performance, high-reliability digital input module that serves as a critical component in Triconex safety systems, providing robust signal monitoring and control for industrial processes¹³.
