Description
2. Specifications

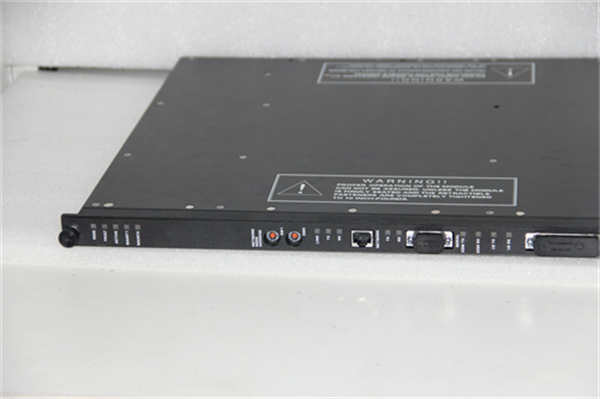

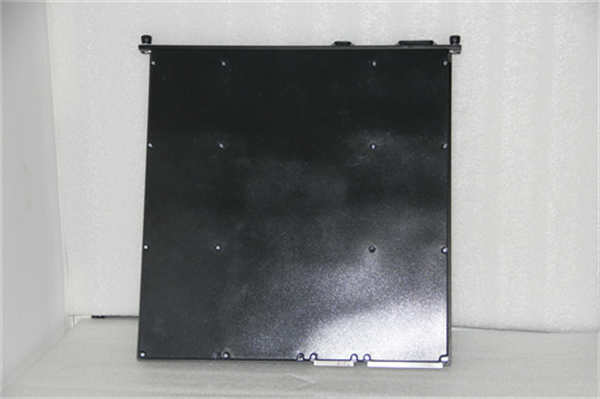

Product type: Main processor
Main processor: MOTOROLA MPC860, 32 bit, 50 MHZ
Memory: 16 MB DRAM (no backup battery), 32 KB SRAM (with backup battery), 6 MB flash PROM
TriClock: Time and date, spare battery, typical drift: 2 seconds/day, maximum drift: 2.16 seconds/day
TriBus: 25 megabits/SEC, 32-bit CRC protection, 32-bit DMA, fully isolated
Serial port: For diagnostic analysis, an optically isolated RS-232 interface on a 25-pin connector, 500 VDC isolated
3. Size and weight
Size: 10.3cm×6.3cm×10.5cm (may be different, the specific object shall prevail)
Weight: Different sources give different weights, there are 1.5kg and 3kg, the specific weight can vary by product batch or configuration.
1. Parameters
Input voltage range: 10.5-30 volts (RMS)
Output voltage range: 0-10 volts (RMS)
Maximum output current: 24 amps
Maximum frequency: 2500 Hz
Accuracy: ±1%
Operating temperature range: -40℃~70℃
Housing grade: IP20
Communication protocol: Modbus, Ethernet, etc
