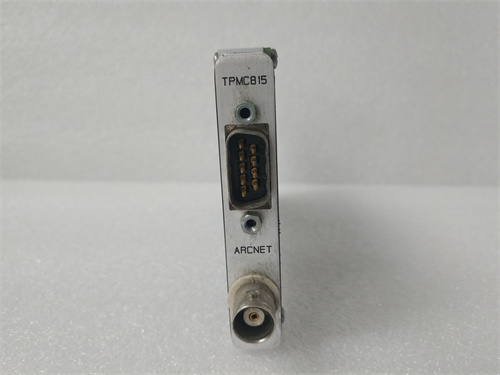

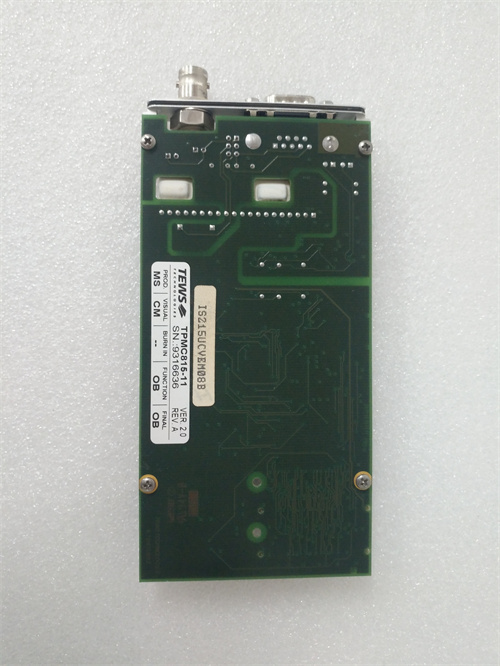

Description
Features:
Standard compatibility: Standard single-width 32-bit PMC module compliant with IEEE P1386.1, also compliant with PCI 2.1 interface
High-speed data transfer: provides a data transfer rate of 2.5 Mbps
Network topology support: Supports star, bus, and ring network topologies
Isolation and protection: 250 V RMS isolation voltage and 50 dB common mode rejection
Rugged: Designed to withstand harsh environmental conditions
Flexible configuration: Node addresses can be configured
Parameters and specifications:
Interface type: ARCNET
Interface speed: 2.5 Mbps
Node address: Configurable
Bus topology: Supports star, bus, or ring
Power supply voltage: 5 V DC
Power consumption: Max. 5 W
Operating temperature range: -40°C to 85°C
Storage temperature range: -55°C to 125°C
Humidity: 5% to 95% (non-condensing)
Protection level: IP67
Size and weight:
Size: 114 mm x 75 mm x 25 mm (or board size: 149 mm x 74 mm, depending on the reference)
Weight: 0.2kg
